Winkhaus blueMatic EAV4 - General connection diagram

510736465
3
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

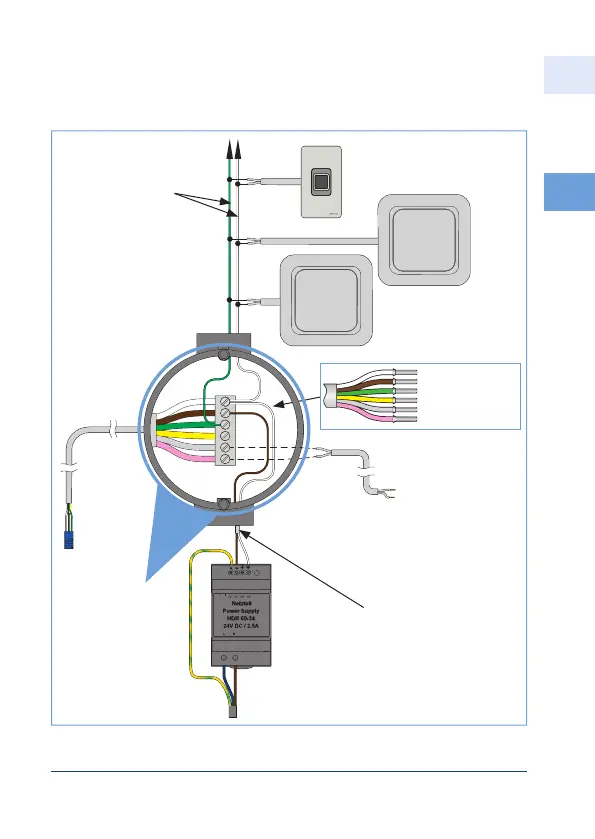

Figure 3.4.1-1: General connection diagram (with DIN rail power supply and
cable transition)
230V AC
L N
- +
* no necessary screened cable
PE
** When using Winkhaus
tappet contact not
assigned/not present
3.4.1 General connection diagram
white  V DC
brown V
green opening signal
yellow** switchover TN
grey**
pink**
}
potential-free
signal output
Recommendation:
flush-type box or
junction box for
cable connection
"Open"
button
to/from cable
transition/
motor housing
external access control
systems (e.g. fingerprint)
cable* of 2 x 0.8 mm,
length of max. 40 m
e.g. connection terminal (on site)
cable* of 2 x 0.8 mm,
max. 100 m
(up to the last access
control system/up to
the last button)
additional
buttons
programmable motor housing
output (potential-free)
only with EAV4+:
• Door closed and locked
(preset as default)
• Release signal for swing
door opener
