blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
3.5 Connection of swing door drive/swing door opener
The swing door opener is connected via the programmable output (grey + pink
wires).
3.5.1 Connection via programmable output
Use of programmable output only possible with
EAV4+:
• 6-pole Winkhaus cable transition or cable or
other cable transitions (min. 6 wires)
• not possible with Winkhaus tappet contact
(3 wires)

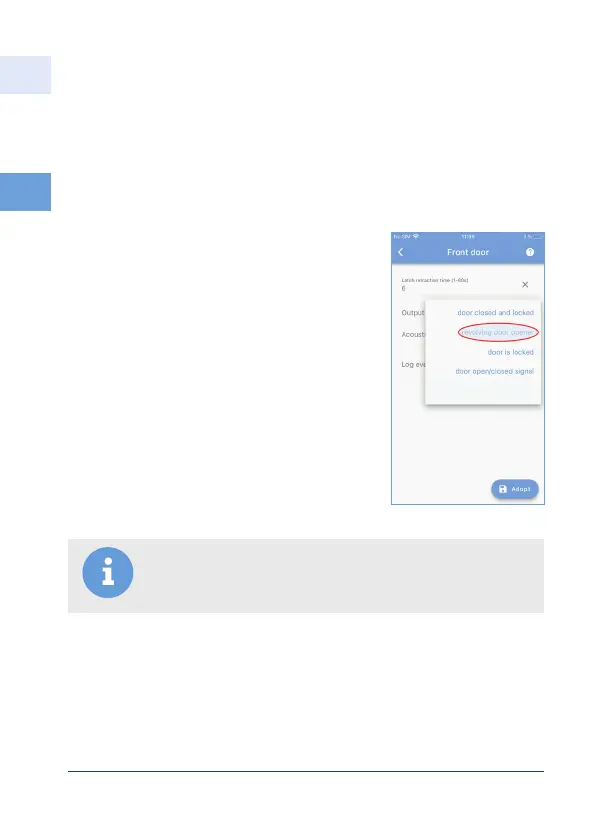

• Output must be set to swing door opener signal
via the app.
• Standard signal: door closed and locked, which
is then no longer usable.
• Output emits a signal after complete unlocking
(contact closed for 1 second), which starts the
swing door opener.
Notice: If the programmable output is used for controlling the
swing door opener, all other application options are omitted
(e.g. output of combined signal "door closed and locked" +
"door is locked")
3.5.2 Connection via time control of swing door opener
Alternatively, the motorised Winkhaus locking system can be controlled by
a time control function on the swing door opener, which sends the external
opening signal to the locking system and then starts the swing door opener with
a time delay. For details, see specific description of swing door opener.
