blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

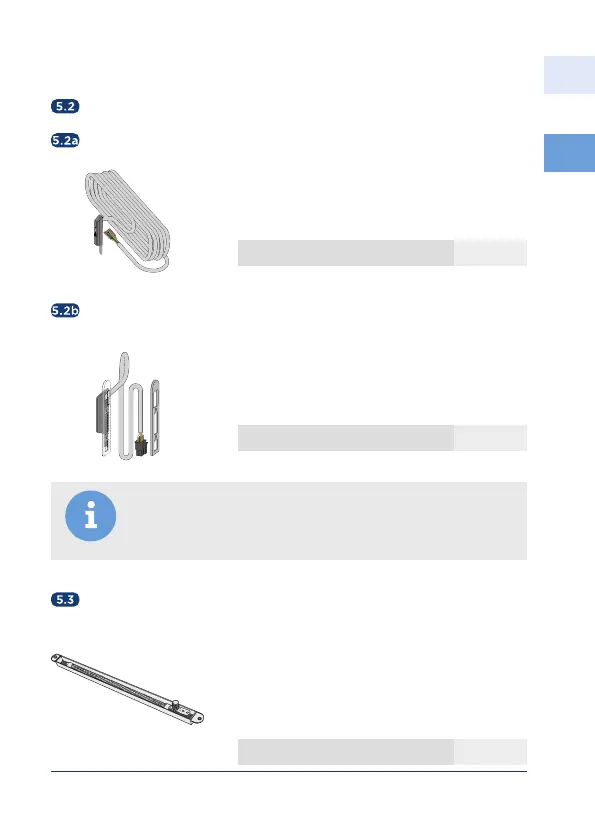

Cable transition frame part for T-KÜ-T1
Cable transition frame part for external power supply
Cable transition frame part for frame power supply
Frame part with 4 m cable and cable end sleeves
(6 wires)
T-KÜ-T RT KABEL M 5040503
Frame part with 0.6 m cable and plug for frame
power supply inclusive cover strip STV-KÜ-T1 RT
R8, to cover the profile hole on the frame side
T-KÜ-T RT KABEL M RNT 5040504
Notice: If no separable cable transition (e.g. T-HT KÜ M1188) or
no Winkhaus cable transition is used, then the cable T-HT
ANSCHLUSSKABEL 6M/6ADRIG FÜR MOTOR (5104567) for
motor housing must be used.
Cable transition for fitting by cutting, to be sui-
ted for timber entryway doors
• extremely rugged design
• of chromium-plated steel
• concealed in the rebate
T-HT KÜ M 2126942
Cable transition T-HT KÜ M1188
