Notice: As an alternative to the above-mentioned cable
transitions, it is also possible to use a tappet contact. For
details, see Chapter 9 / Accessories or "blueMatic EAV tappet
contact operating instructions".
Notice: In the case of cable transition T-HT KÜ M1188, the cable
is continuous and cannot be separated.
Notice: The Winkhaus power supply 24V DC is designed for the
operation with Winkhaus locks. In addition, small consumers
(e.g. fingerprint in the door element) can be supplied with this
power supply - up to on additional power requirement of max.
0.5A and the voltage requirement must match the power supply
(24V DC).
510736440
2
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

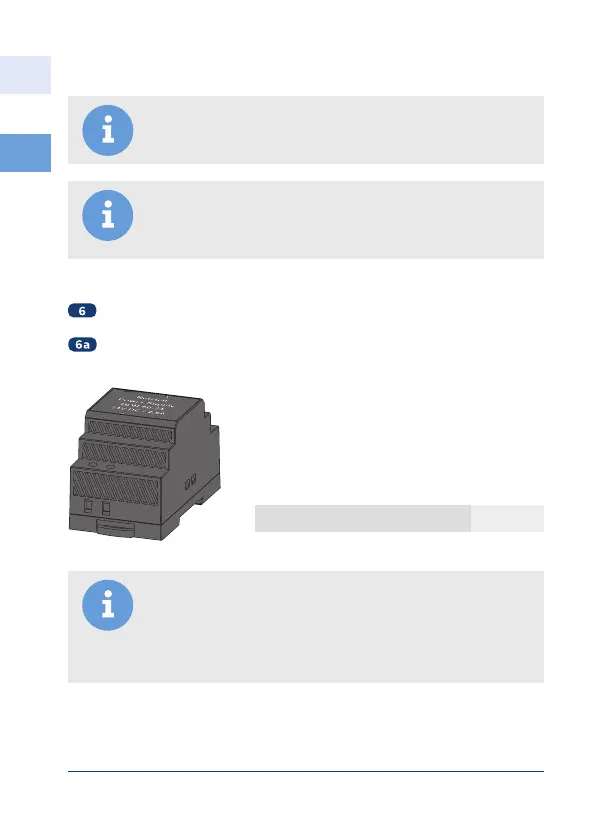

T-HT NETZTEIL V DCA 2126934
Power supply
External power supply
Power supply unit for blueMatic EAV4 / EAV4+
input: 100 - 240V, 50/60Hz,
output: 24V DC/2,5A,
mounting on DIN rail, includes connection
diagram
