Winkhaus blueMatic EAV4 - Magnetic clip + keep

Notice: The magnetic clip must be ordered and installed
separately for keep rails.
For single keeps, the below-mentioned magnetic clip with keep
must be used.
510736430
2
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

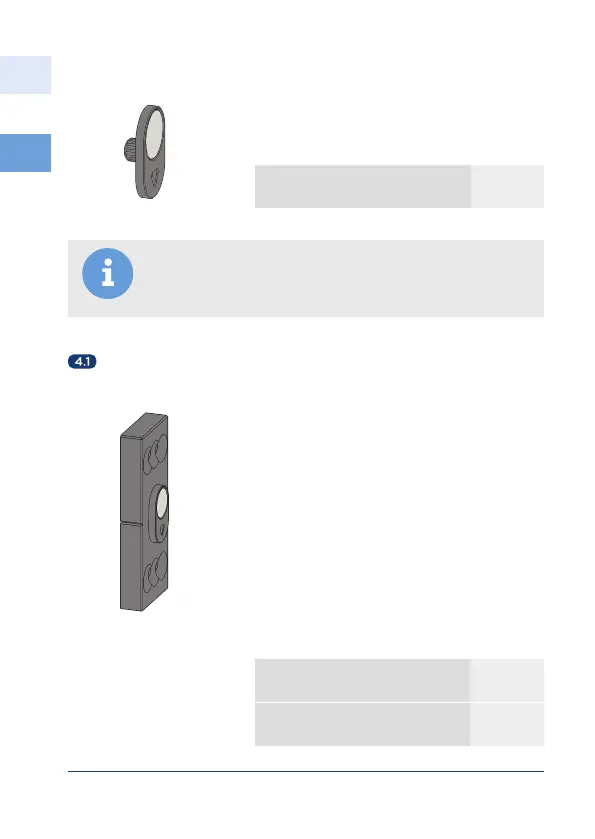

Magnetic clip + keep
Magnetic clip + keep for triggering the automatic
locking system
• for use with single keeps for PVC-U/wood/
aluminium
• can be used for high residual airgaps
between frame and upper edge of faceplate/
lock (see Chapter 3.2)
• keep height 7.5 mm here
• adjustable +/-3 mm
• use adapter parts for profile adjustment in
PVC-U
• no routing required for PVC-U/aluminium
• for wood 4 mm airgap = with end caps from
STK/RNT = can be milled in
T-MAGNETCLIP  EAVBM
SB UX GR
5097918
T-MAGNETCLIP  EAVBM
SB UX GR
5092492
• can be used for low residual airgaps between
frame and upper edge of faceplate/lock (see
Chapter 3.2)
T-MAGNETCLIP  EAV
BM GR
5097915
