blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

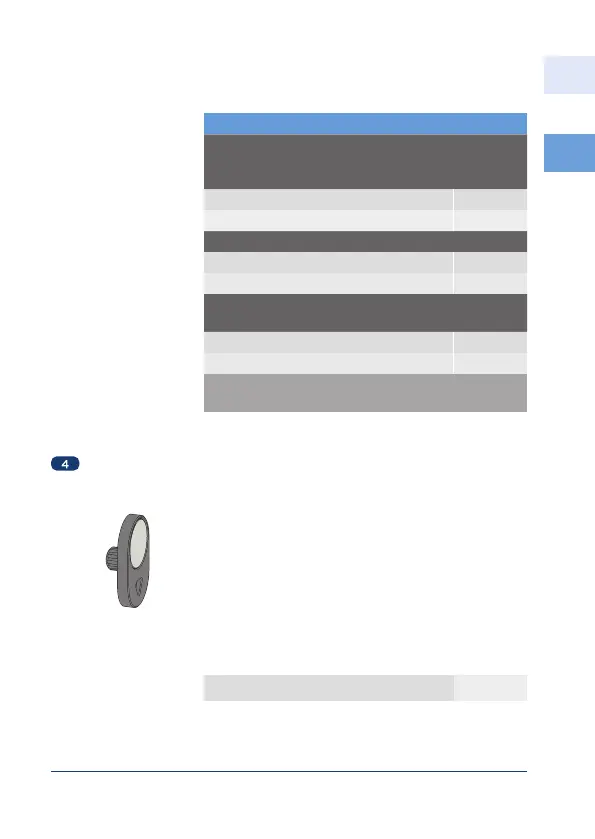

Magnetic clip
Magnetic clip for triggering the automatic locking
system
• used with extension keep rails/keep rails
• keep rails are pre-drilled (diameter 4.5 mm)
• easily clippable
• adjustable +/-3 mm
• can be used for high residual airgaps between
frame and upper edge of faceplate/lock (see
Chapter 3.2)
T-MAGNETCLIP EAVBM GR 5092487
Part description
Daytime latch with lower contact pressure 10-9
(can be used with standard - T-SB FRA or FAB1,
not with FAB)
T-TAGESFALLE 10/9 TAFA FA STARK RS
5015111
T-TAGESFALLE 10/9 TAFA FA STARK LS
5015110
Daytime latch with higher contact pressure 9-92.5
T-TAGESFALLE 9/92,5 TAFA FA STARK RS
5041969
T-TAGESFALLE 9/92,5 TAFA FA STARK LS
5041970
Daytime latch O, »Permanently open« (replace-
ment for roller latch)
T-TAGESFALLE-O 9/91 TAFA FA STARK 5042652
T-TAGESFALLE-O 10/9 TAFA FA STARK
5042651
STRONG = design with strong spring for higher
sealing pressure
