blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

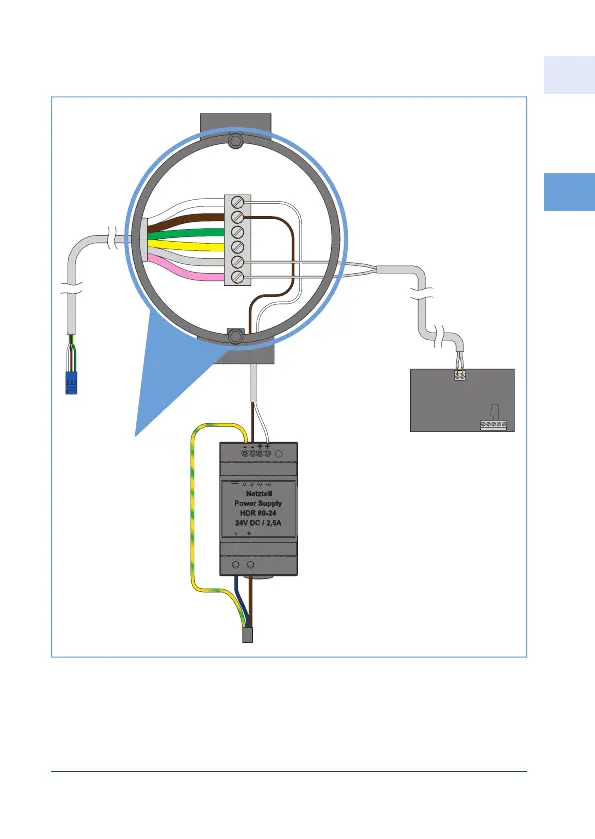

Figure 3.5.2-1: General connection diagram with swing door drive
230V AC
L N
PE
Programmable output
Motor housing (potential
free) only with EAV4+:
Change in app from "door closed
and locked" (default setting)
to "enable signal for
swing door opener"
Only the wiring of the
motorised locking
system with the swing
door drive is shown.
All other connections
can be found in the
documents for the
respective component.
to/from
cable
transition/
motor
housing
e.g. connection
terminal (on site)
Recommendation:
flush-type box or
junction box for
cable connection
