blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Attention! The lock’s feedback
contact CANNOT be used with a
5-wire cable. To this effect
6 wires are absolutely necessary!

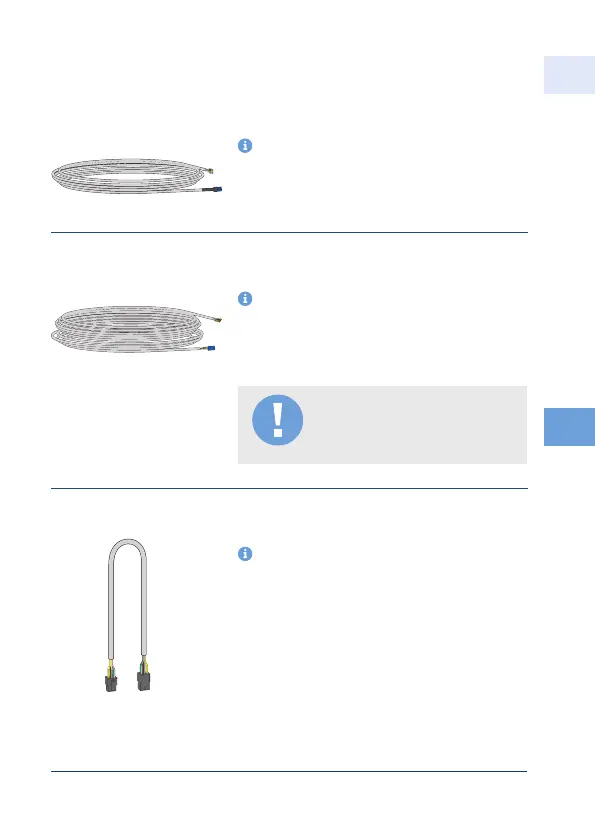

T-LB VERL.KABEL 0,25 M RNT ZU KÜ-T1
(5066122)
plug-in extension between frame power
supply RNT and frame part cable transition
T-KÜ-T1 RT KABEL 0,6M RNT
Extension cable
Connection cable 6 m
6-wire for motor
T-HT ANSCHLUSSKABEL 6M/6ADRIG FÜR
MOTOR (5104567)
Cable 6 m (6 x 0,25 mm)
1st Cable end with plug for motor housing BM+
2nd Cable end with wire end sleeve
Use as an alternative to cable transition
T-KÜ-T1 FT 2/3,5/4,5 M.
Connection cable 10 m
5-wire for motor
T-HT ANSCHLUSSKABEL 10M/5ADRIG FÜR
MOTOR (5025348)
Cable 10 m (5 x 0,25 mm)
1st Cable end with plug for motor housing BM+
2nd Cable end with wire end sleeve
Use as an alternative to cable transition
T-KÜ-T1 FT 2/3,5/4,5 M.
