Winkhaus blueMatic EAV4 - Page 59

510736459
3
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

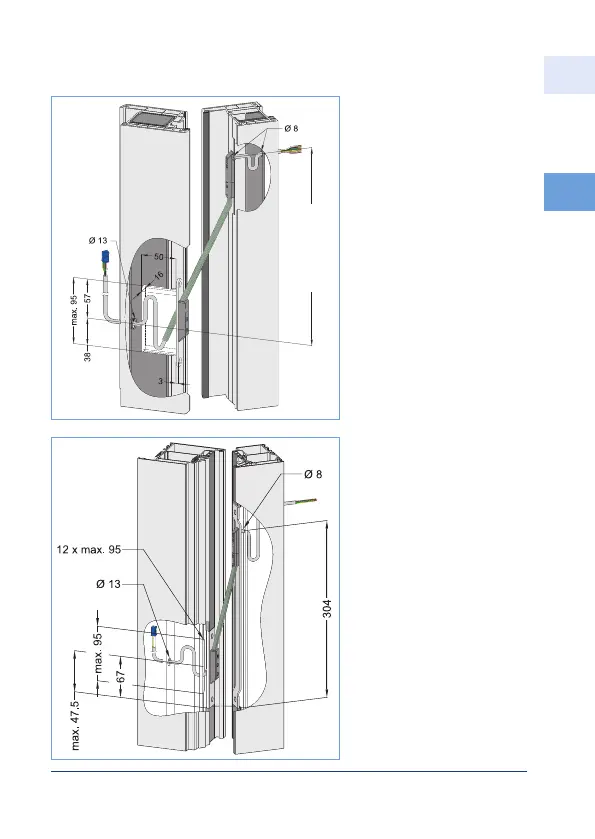

Figure 3.3.1-5: Routing
dimensions for T-KÜ-T1
FT + RT and cover plate
F16 in PVC
Figure 3.3.1-6: Routing
dimensions for T-KÜ-T1
FT + RT and cover plate
F24 in aluminum
Distance approx. 245Distance approx. 245
Under pre-tension!Under pre-tension!
