blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

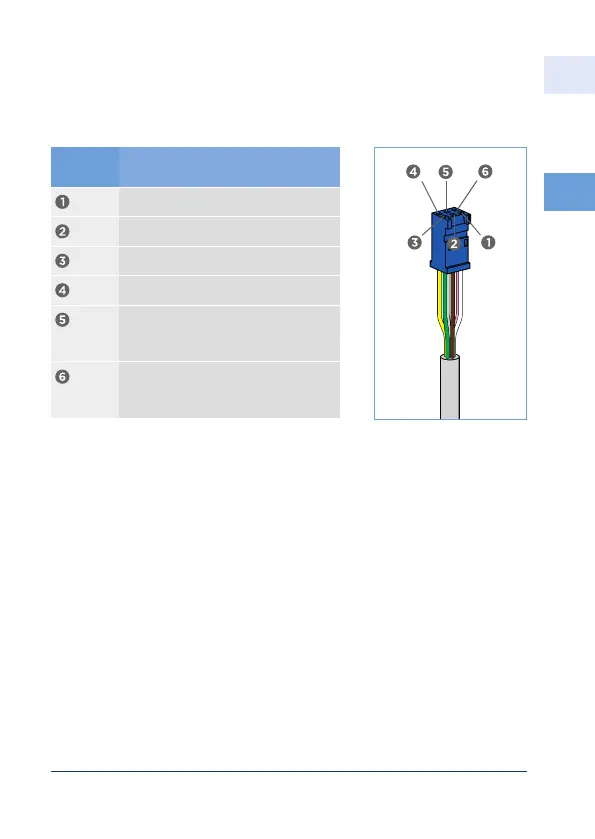

Figure 3.3.2-4: Cable assignment when used with blueMatic EAV4 / EAV4+
Wire
Cable assignment when used with
blueMatic EAV4 / EAV4+
white V DC
brown V ground
green Opening signal (unlocking)
yellow unscript
grey potential-free signal output
various signals can be set
Standard door closed locked
pink potential-free signal output
various signals can be set
Standard door closed locked
Cable assignment blue motor housing plug
