blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

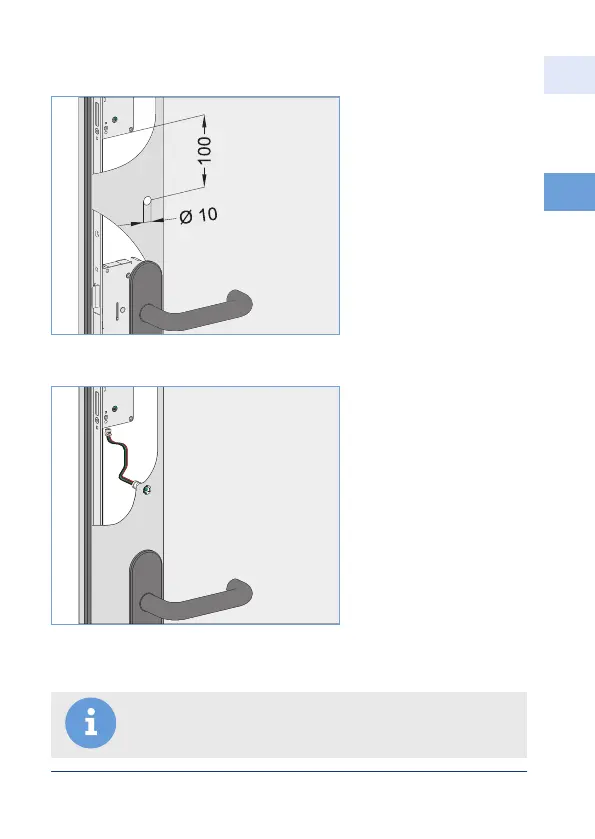

Figure 3.7-2: LED location hole
Figure 3.7-3: LED position installed
Installation
• Drill a hole in the sash
(on the outside)
• Drilling diameter LED:
10 mm
• LED position: approx.
50 ... 100 mm below
the bottom edge of
the motor housing
• Lead the LED with
plug (for motor
housing), cable and
socket from the
outside through the
10 mm hole in the door
sash
• Plug in the connector
on the motor housing
(below, towards the
faceplate).
• Cable length approx.
20 cm
Notice:
The green LED goes out after 2s or after opening the sash.
