blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

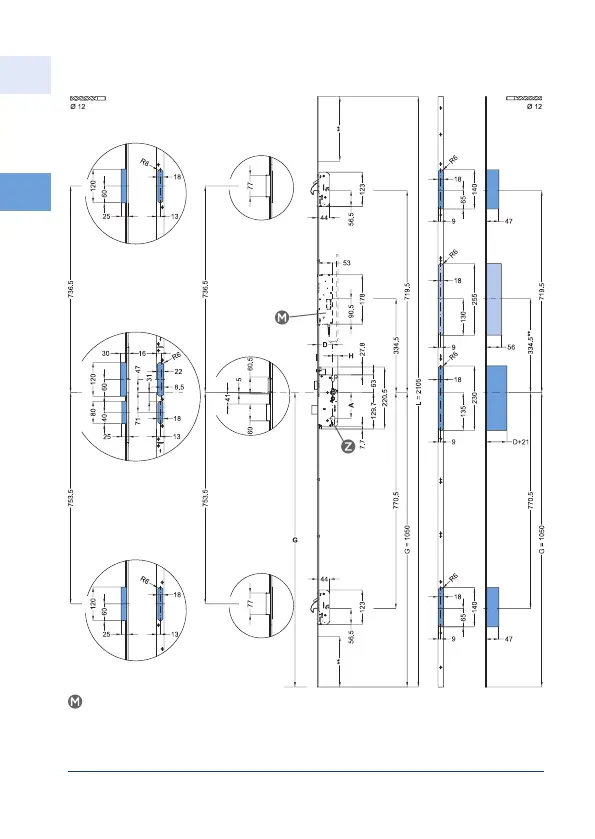

Figure 3.1-1: Example dimensions for locking T-AV4D F2060 ..., Version 60 for
standard entrance doors (Recommended sash rebate height: 1875 to 2230 mm)
Motor housing EAV4 or EAV4+ (for EAV4+ with magnetic clip)
