Winkhaus blueMatic EAV4 - Page 63

510736463
3
EN
blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

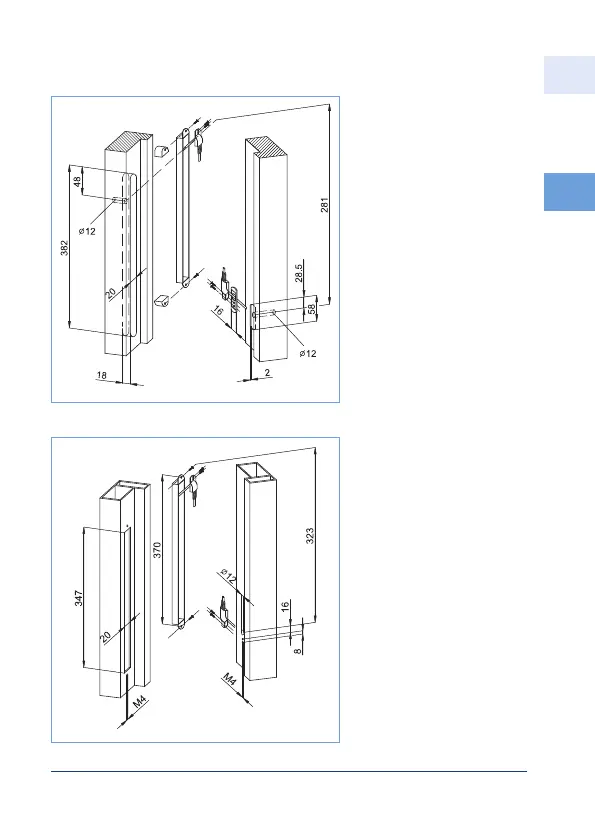

Figure 3.3.3-3: Fitting in
timber
Figure 3.3.3-4:
Fitting in
PVC / aluminium
