blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

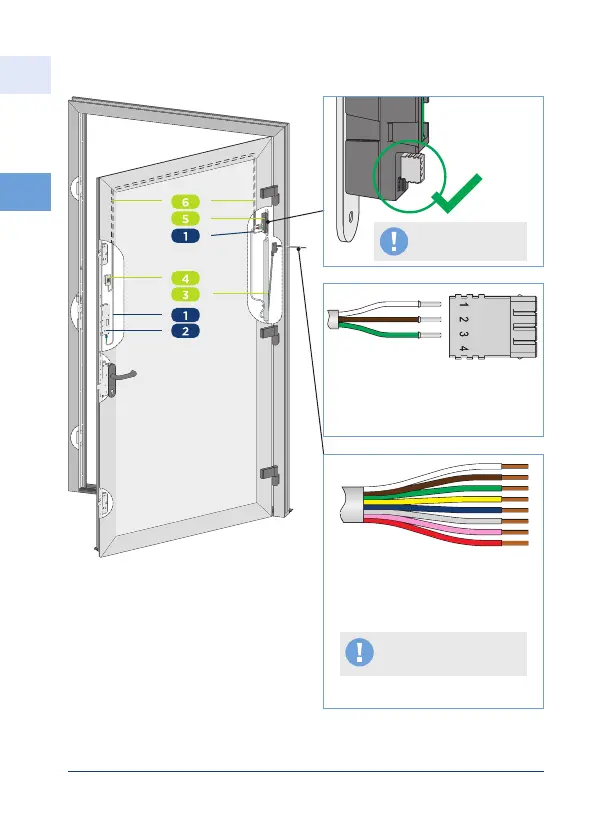

Figure 3.6.2-3: Wiring blueMatic EAV4 / EAV4+ with "Fingerprint ekey dLine
and cable transition ekey" (sash side)
Attention!
jumper stays
white VDC ()
brown GND (-)
green external opening signal
Connection to the ekey dLine control unit
(ekey plug and Winkhaus cable)
white VDC () ()
brown GND (-)
green ekey bus
yellow ekey bus
blue Input potential-free
grey Input potential-free
pink for functional testing
red for functional testing
Attention!
Free wires must be
isolated separately.
Assignment of the ekey cable transition
