blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Connection of motor
housing to radio
receiver ENTRAsys+
RX (plug-in)
Connection from
radio receiver
ENTRAsys+ RX
to the fingerprint
ENTRAsys+ FD
(plug-in)
Attention!
Remove jumpers
(without a jumper,
the output is
potential-free)

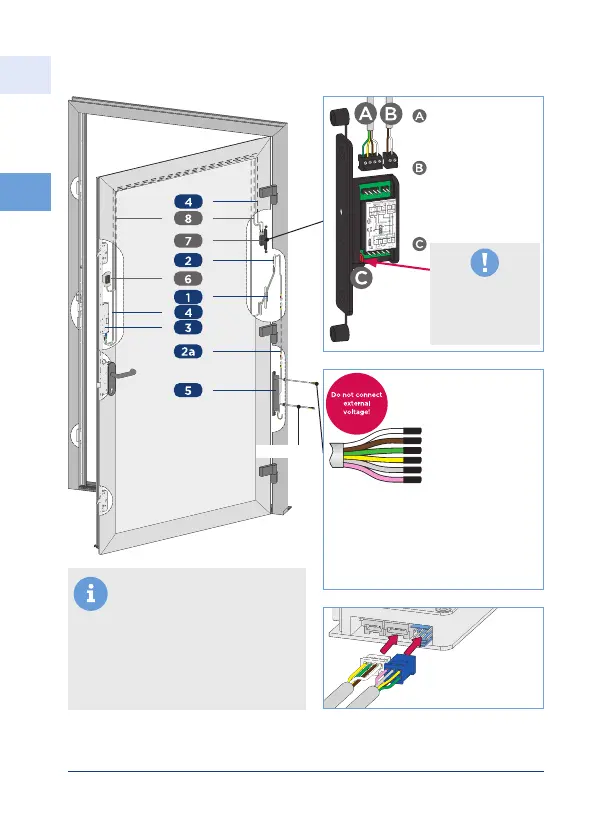

Figure 3.6.2-7: Wiring blueMatic EAV4 / EAV4+ with "Fingerprint SOMMER
ENTRAsys+ and frame power supply" (sash side)
230V AC
white V DC
brown V Masse
green
external opening signal
yellow
not used
grey
pink
green external opening signal (unlock)
greypink only with EAV otherwise not used
potential-free signal output various
signals adjustable
• Default door closed locked
• alternatively signal for swing door
opener
Notice! max m extendable
(min x mm)
}
EAV
potential-free
signal-output
Assembly -wire blue
motor housing plug
-wire white plug for
access control
Notice: The positioning of
frame power supply and
cable transition on the hinge
side is recommended, either
between lower / middle door
hinge or in each case approx.
10 cm above / below the
middle door hinge.
