4.3 Dimmer Switch
Chapter 4: Removal, Replacement, and Adjustment Procedures
4.3 Dimmer Switch
Tools required: Screwdriver Phillips head screwdriver
Removal
SHOCK HAZARD:
Locate the involved building circuit breaker panel. Set the involved
circuit breaker to OFF. Lock out and tag out the breaker. Failure to
follow this procedure could result in personal injury or equipment
damage.
1. Set the involved circuit breaker to OFF.
2. Lock out and tag the circuit breaker.
3. Remove the dimmer switch knob (C) (see figure 4-3 on page 4-7).

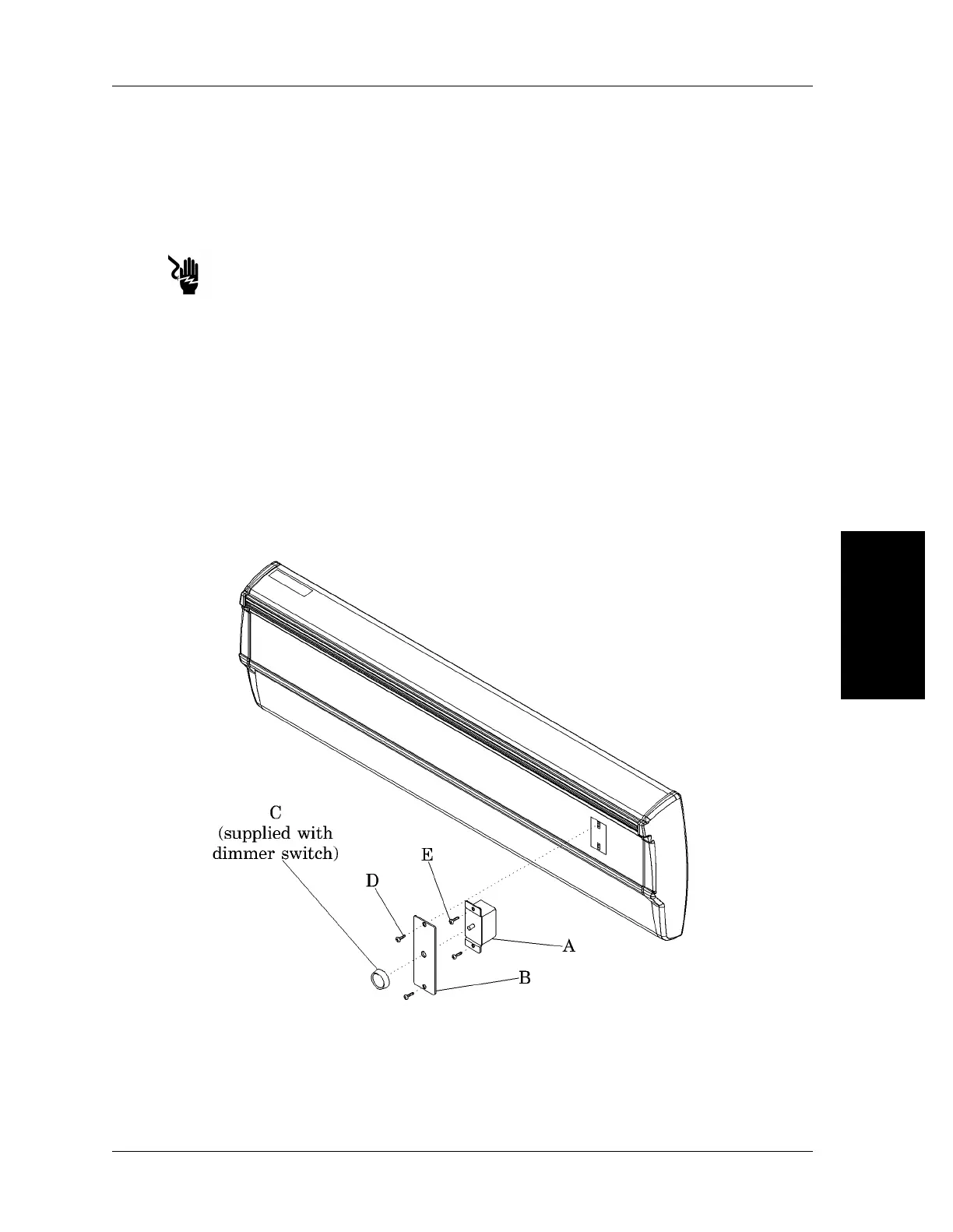

Figure 4-3. Dimmer Switch Removal
m148a001
4
4. Using the phillips head screwdriver, remove the faceplate screws (D) and
the faceplate (B).
Integris® 2001 Headwall System Service Manual (man148ra) Page 4 - 7
