4.8 Timed Light Switch and Toggle Switch
Chapter 4: Removal, Replacement, and Adjustment Procedures
4.8 Timed Light Switch and Toggle Switch
Tools required: Phillips head screwdriver Screwdriver
Removal
SHOCK HAZARD:
Locate the involved building circuit breaker panel. Set the involved
circuit breaker to OFF. Lock out and tag out the breaker. Failure to
follow this procedure could result in personal injury or equipment
damage.
1. Set the involved circuit breaker to OFF.
2. Lock out and tag the circuit breaker.
3. Using the phillips head screwdriver, remove the timed light switch
mounting screws (D) (see figure 4-7 on page 4-17).

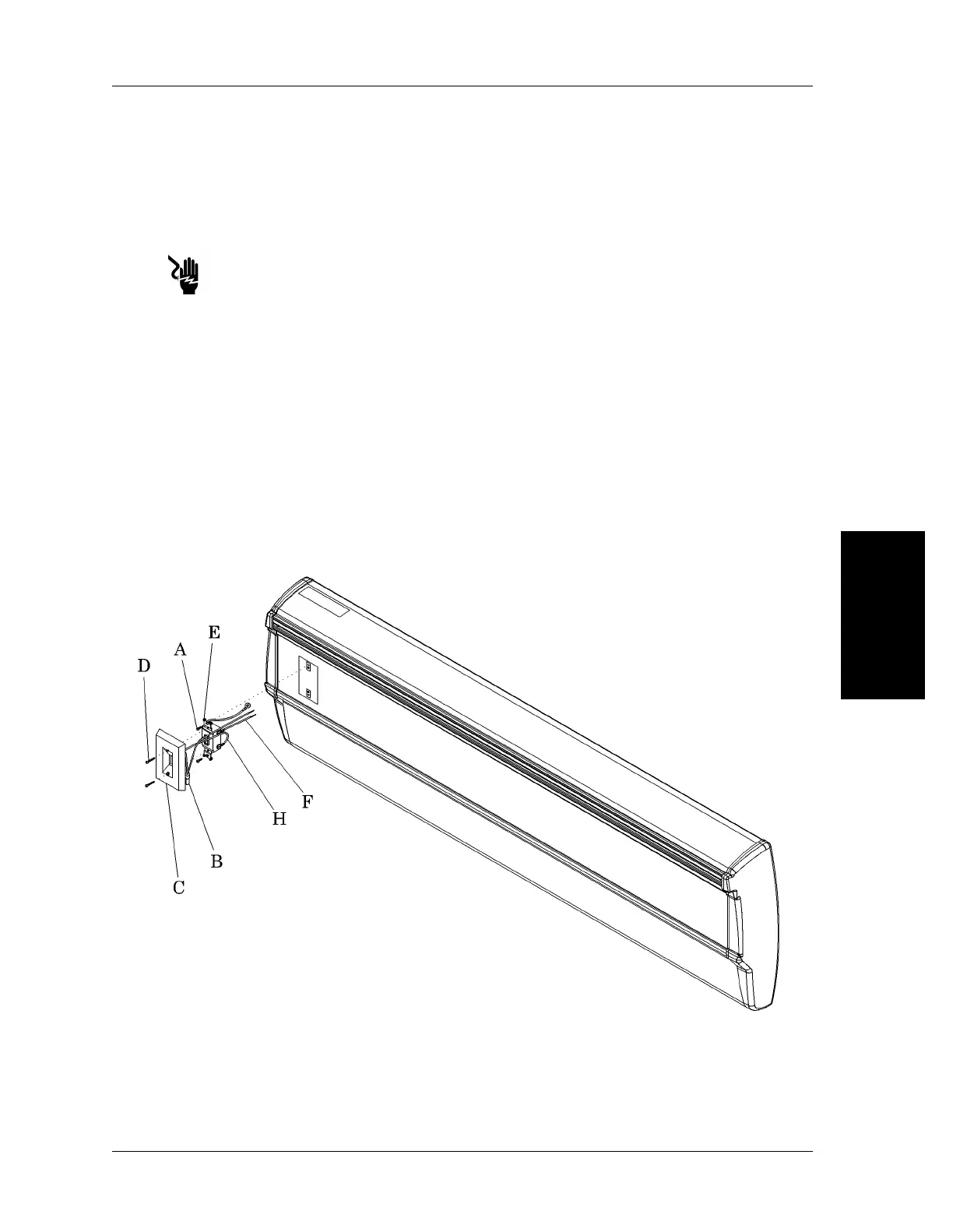

Figure 4-7. Timed Light Switch and Toggle Switch
m148a017
4
4. Pull the timed light switch (C) away from the raceway (G).
Integris® 2001 Headwall System Service Manual (man148ra) Page 4 - 17
