4.5 Ground Jack Receptacle
Chapter 4: Removal, Replacement, and Adjustment Procedures
4.5 Ground Jack Receptacle
Tools required: Screwdriver Phillips head screwdriver
Removal
1. Using the phillips head screwdriver, remove the screws (C) and the
faceplate (B) from the raceway (see figure 4-5 on page 4-11).

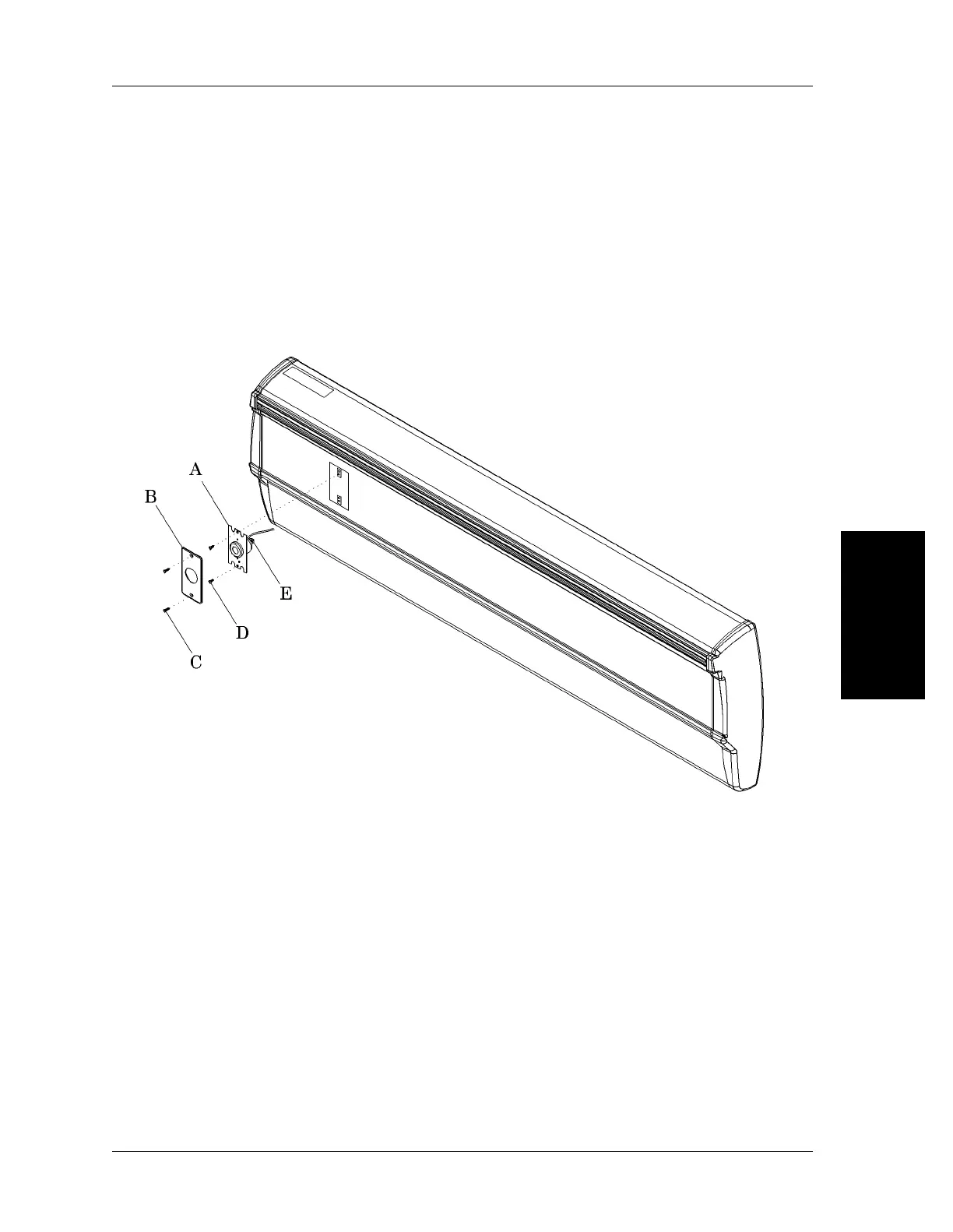

Figure 4-5. Ground Jack Receptacle Removal
4
m148a015
2. Using the phillips head screwdriver, remove the ground mounting plate
screws (D), and pull the receptacle away from the raceway.
3. Using the screwdriver, loosen the ground wire fastener (E) just enough to
remove the ground wire from the receptacle (A).
Integris® 2001 Headwall System Service Manual (man148ra) Page 4 - 11
