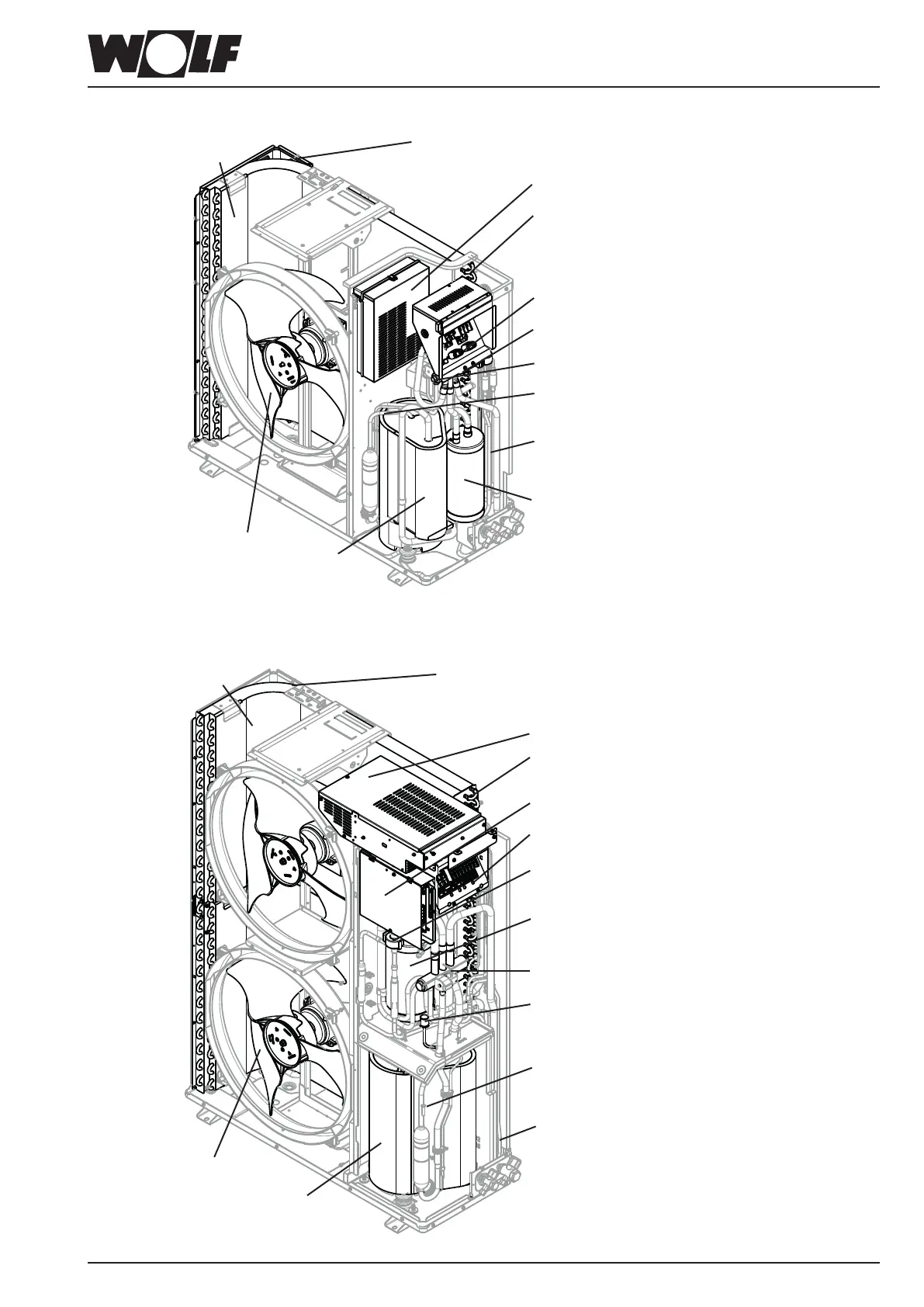

Structure
5.2 BWL-1S(B)-05/07outdoormodule
Fan
Liquid separator
4-way valve
Compressor
Evaporator
Inverter with PCB
Electrical connection
OAT: evaporator air intake temperature sensor
(T_supply air/supply air temperature)
OMT: evaporator temperature sensor
(T_evaporator/evaporator temperature)
pHi: high pressure switch
CTT: compressor head temperature sensor
(T_hot gas/hot gas temperature)
OCT: Ee
5.3 BWL-1S(B)-10/14/16outdoormodule
Evaporator
Liquid separator
4-way valve
Electronic expansion valve
Fan
Compressor
Inverter
PCB
Electrical connection
OAT: evaporator air intake temperature sensor
(T_supply air/supply air temperature)
OMT: evaporator temperature sensor
(T_evaporator/evaporator temperature)
pHi: high pressure switch
CTT: compressor head temperature sensor
(T_hot gas/hot gas temperature)
OCT: evaporator refrigerant temperature sensor
