Wolf BWL-1S-07 - System Configuration 33

80 3064298_201805
Systemcongurations

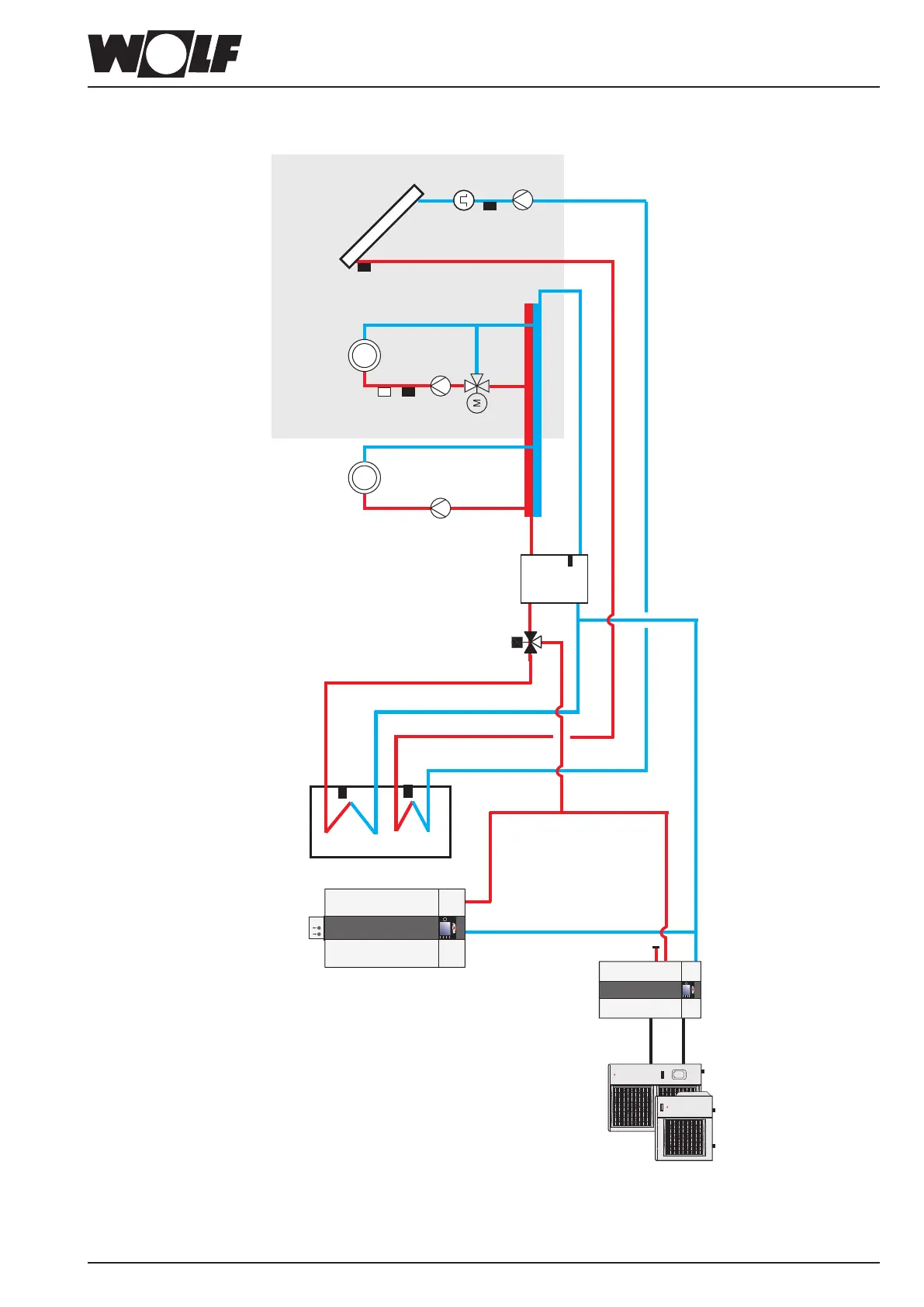

29.2.9 Systemconguration33
SFK
SKP DFG RLF
Separating cylinder
Heating circuit
HCP
Circuit with mixer
MCP
MaxTh
VF
MM
With indoor module 3-way diverter valve for heating/DHW and feed/heating circuit pump integral
Indoor module
Outdoor module
Solar DHW cylinder
Please note: Header temperature sensor SAF must be installed in the return area of the low loss header or separating cylinder.
SAF
Extension options
CGB-2
BWL-1S(B) ●Splitair/waterheatpump ●Separatingcylinder ●
Solar DHW cylinder
●CGB-2(activationviaoutputA1) ●Heatingcircuit ●CircuitwithmixerextensionwithMM ●SolarcircuitextensionwithSM1/SM2 ●DHWheating ●Alternatively,dualmodeoperationonlyispossible
Important information: In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented. These should be provided for each system individually, in line with the applicable standards and regulations. Hydraulic and electrical data can be found in the hydraulic system solutions technical guide.
SFS
SF
3-way diverter valve
heating/cooling
