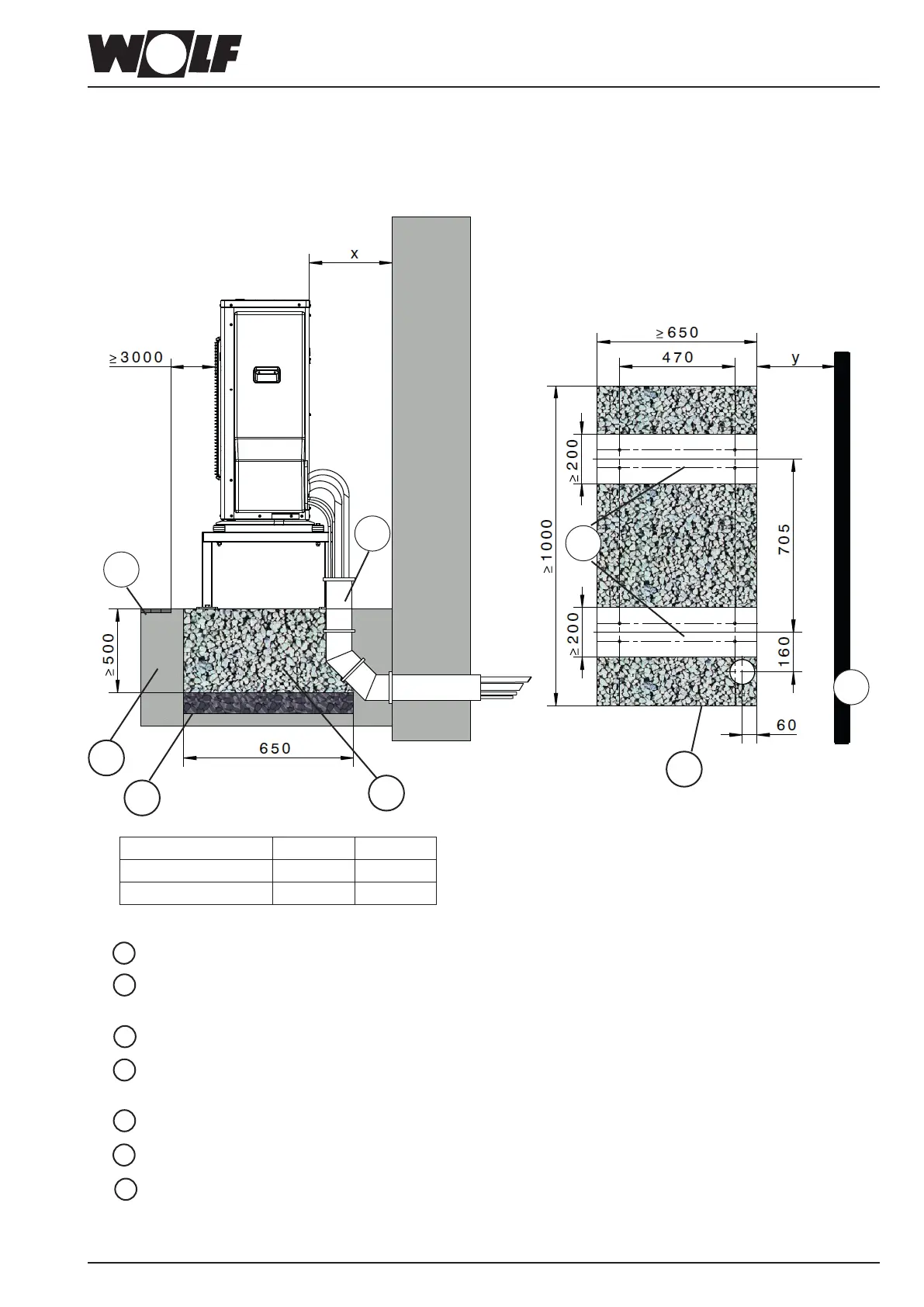

Gravelbedandfoundationdiagram
11 Gravelbedandfoundationdiagram
Baseforfloorstandinginstallation
A Gravel bed as condensate soakaway
B Frost protection base for foundation (compressed gravel, e.g. 0 – 32/56 mm),
layer thickness in accordance with local conditions and applicable building regulations
C Foundation strip
D KG pipe DN 100 with 2 pipe bends 45° (instead of 1x 90°), for refrigerant lines and electrical cables to the
indoor module, pipe requires sealing on-site (only required if routing the lines below ground level)
E Ground
F Footpath or similar
G External wall (final dimensions)
A
B
D
E
F
C
X Y
BWL-1S(B)-05/07 175 mm 30 mm
BWL-1S(B)-10/14/16 250 mm 105 mm
A
G
