Wolf BWL-1S-07 - CHC Split; 300 Heat Pump Centre; Dimensions; Minimum Clearances

3064298_201805 35
CHCSplit/300heatpumpcentre
19 CHCSplit/300heatpumpcentre
19.1 CHCSplit/300
The BWL-1S-05/07/10/14/16 can be combined with the SEW-2-300 DHW cylinder and PU-50 buffer cylinder
to form a heat pump centre.
The PU-50 buffer cylinder can be installed as a series or separating buffer and ensures the necessary
defrost energy is available

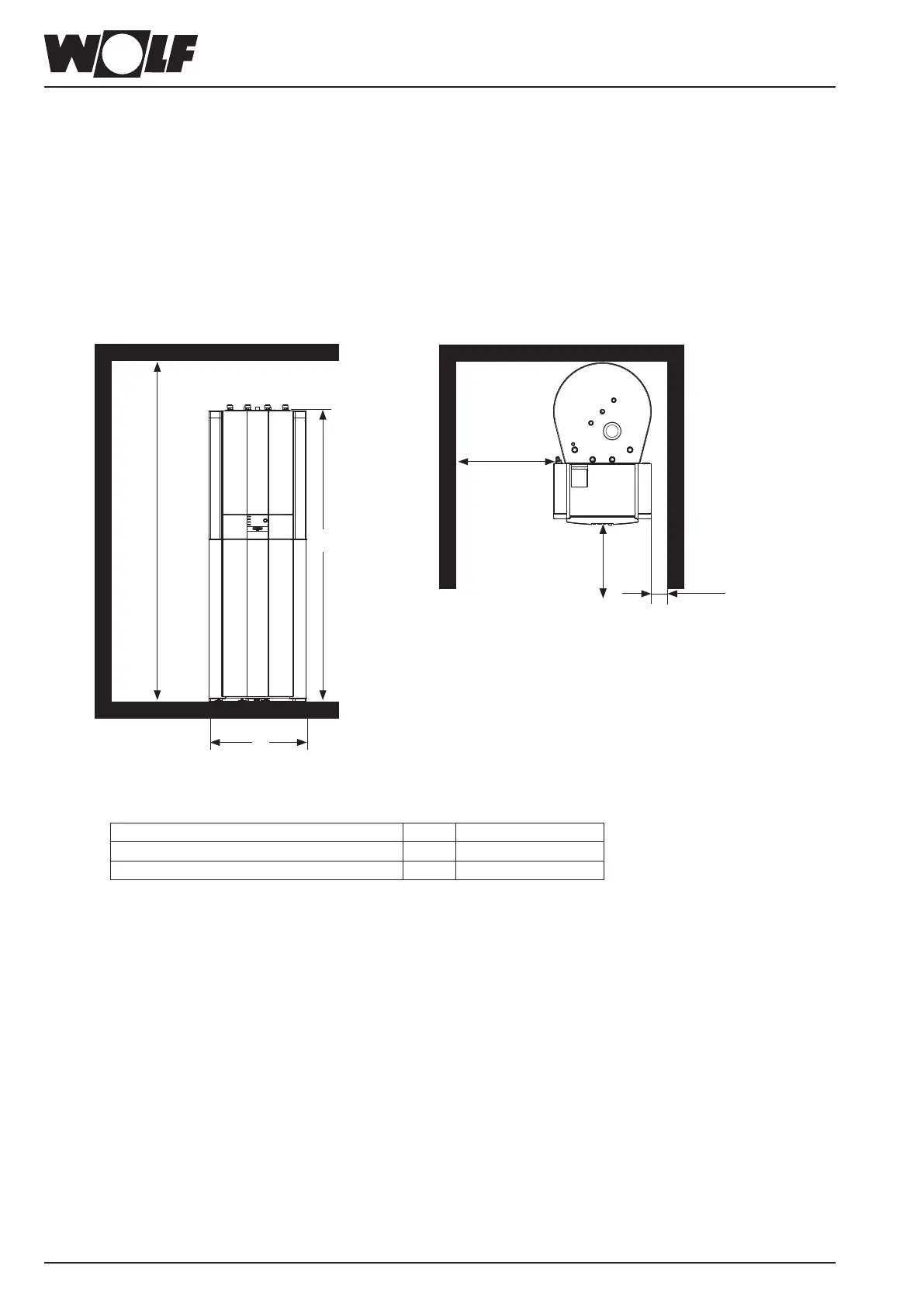

19.2 Dimensions/minimumclearances
CATDWG0124868
Tro
08.06.17
1:10
-
0,000
MA Mindestabstände BWL-
1S-300
CATIAV5R24SP4
1
1
Mindestabstände Vorderansicht BWL-1S-300
Mindestabstände Draufsicht BWL-1S-300
CHC Split / 300 front view
≥2100
A
B
CATDWG0124868
Tro
08.06.17
1:10
-
0,000
MA Mindestabstände BWL-
1S-300
CATIAV5R24SP4
1
1
Mindestabstände Vorderansicht BWL-1S-300
Mindestabstände Draufsicht BWL-1S-300
CHC Split / 300 plan view
≥800
≥80
≥600
Service
clearances
Total height A mm 1785
Width B mm 604
Depth mm 997
