Wolf BWL-1S-07 - Opening the BWL-1 S(B)-10;14;16 Outdoor Module Casing; BWL-1 S(B)-10;14;16 Outdoor Module Electrical Connection

3064298_201805 39
Outdoormoduleelectricalconnection

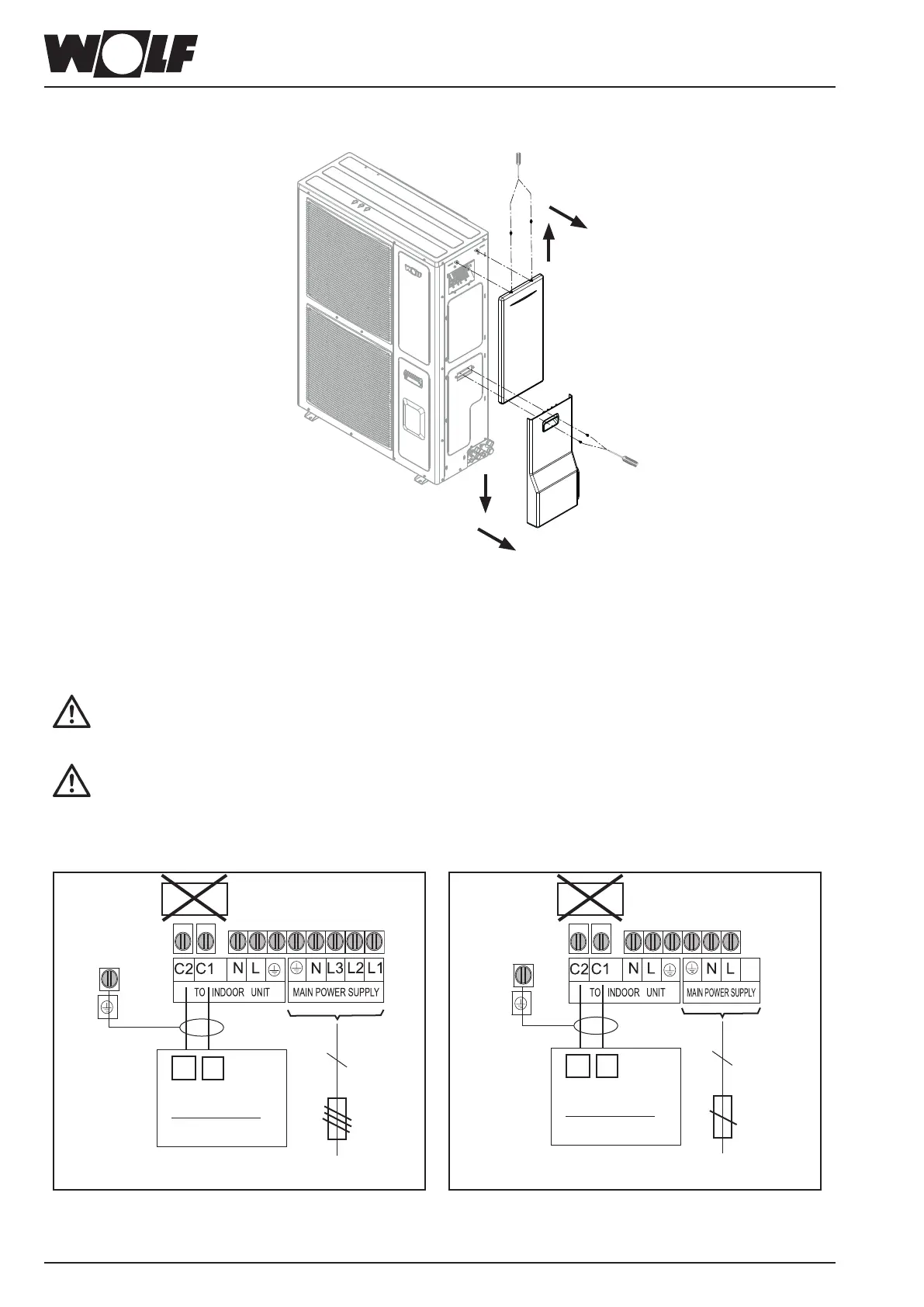

21.3 OpeningtheBWL-1S(B)-10/14/16outdoormodulecasing
BWL-1S(B)-10
BWL-1S(B)-14
BWL-1S(B)-16
1.
2.
1.
2.
21.4 BWL-1S(B)-10/14/16outdoormoduleelectricalconnection
*See"Specication"forfuseprotectionvalues.
TheODUbusconnection(12V)mustberoutedseparatelyfrom230V/400Vcables.
Onlyonebusmaybeconnected.
230V~
BWL-1S(B)-10/230V
BWL-1S(B)-14/230V
Indoor module
Terminal strip X1
1413
Mains
3
*
ODU bus
12 V
(2x0.75 mm
2
, screened)
230V~
BWL-1S(B)-10/400V
BWL-1S(B)-14/400V
BWL-1S(B)-16/400V
Indoor module
Terminal strip X1
1413
Mains
5
*
ODU bus
12 V
(2x0.75 mm
2
, screened)
