Wolf BWL-1S-07 - 13 Routing the Wall Duct; Wall Duct above Ground Level; Wall Duct below Ground Level

24 3064298_201805

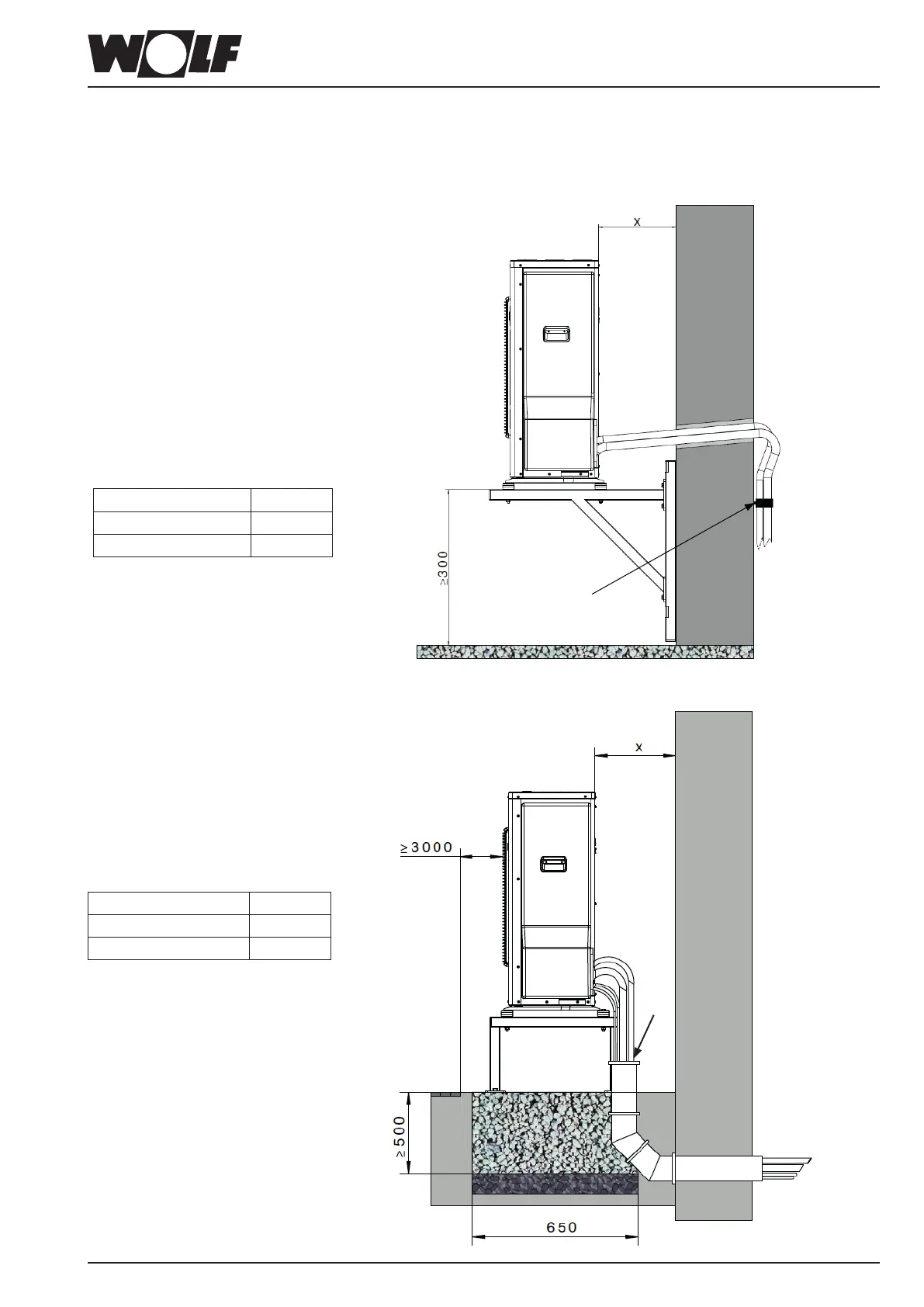

Routingthewallduct
13 Routingthewallduct
13.1 Wallductabovegroundlevel
Observe minimum distance
from building wall
Pipe clamp with
EPDM lining
Pleasenote:
Thewallmountingbracketcanonlybe
usedonwallswithahighmassperunit
area(>250kg/m²).
Lightweightwallsorstudwallsarenot
permitted.
Insulated wall duct (Refrigerant lines must not come into direct contact with the brickwork)
X
BWL-1S(B)-05/07 175 mm
BWL-1S(B)-10/14/16 250 mm
13.2 Wallductbelowgroundlevel
Observe minimum distance
from building wall
Watertight, insulated wall duct
Sealing required
X
BWL-1S(B)-05/07 175 mm
BWL-1S(B)-10/14/16 250 mm
