Wolf BWL-1S-07 - Electrical Connection (230 V)

3064298_201805 45
Indoormoduleelectricalconnection
22.5 Electricalconnection(230V)
230Vmainsconnection
The control and safety devices are fully wired and tested.
You only need to connect the power supply and the external
accessories.
Create a permanent connection for the power supply.
Provide the power supply via a mains isolator (e.g. heating
system emergency stop switch) that ensures at least 3 mm
contact separation for all poles.
No other consumers may be connected to the cable. In
rooms with a bathtub or shower, the appliance may only be
connected via an RCD.
Theindoormodulepowersupplymustnothave
power-OFForashutdowntariff.
Installationinformation–electricalconnection
- Isolate the system from the power supply before opening.
- Remove the front casing.
- Open the integral casing cover.
- Check that the appliance is isolated from the power supply.
- Push the cable through the cable entry.
- Pull out the Rast5 plug.
- Terminate the appropriate cores at the Rast5 plug.
ConnectingoutputZ1(230VAC;max.1.5A)*
Push connecting cable through cable entry.
Connect the cable to terminals L1, N and
.
* Max. 1.5 A / 345 VA per output; sum of all outputs
no more than 600 VA
3

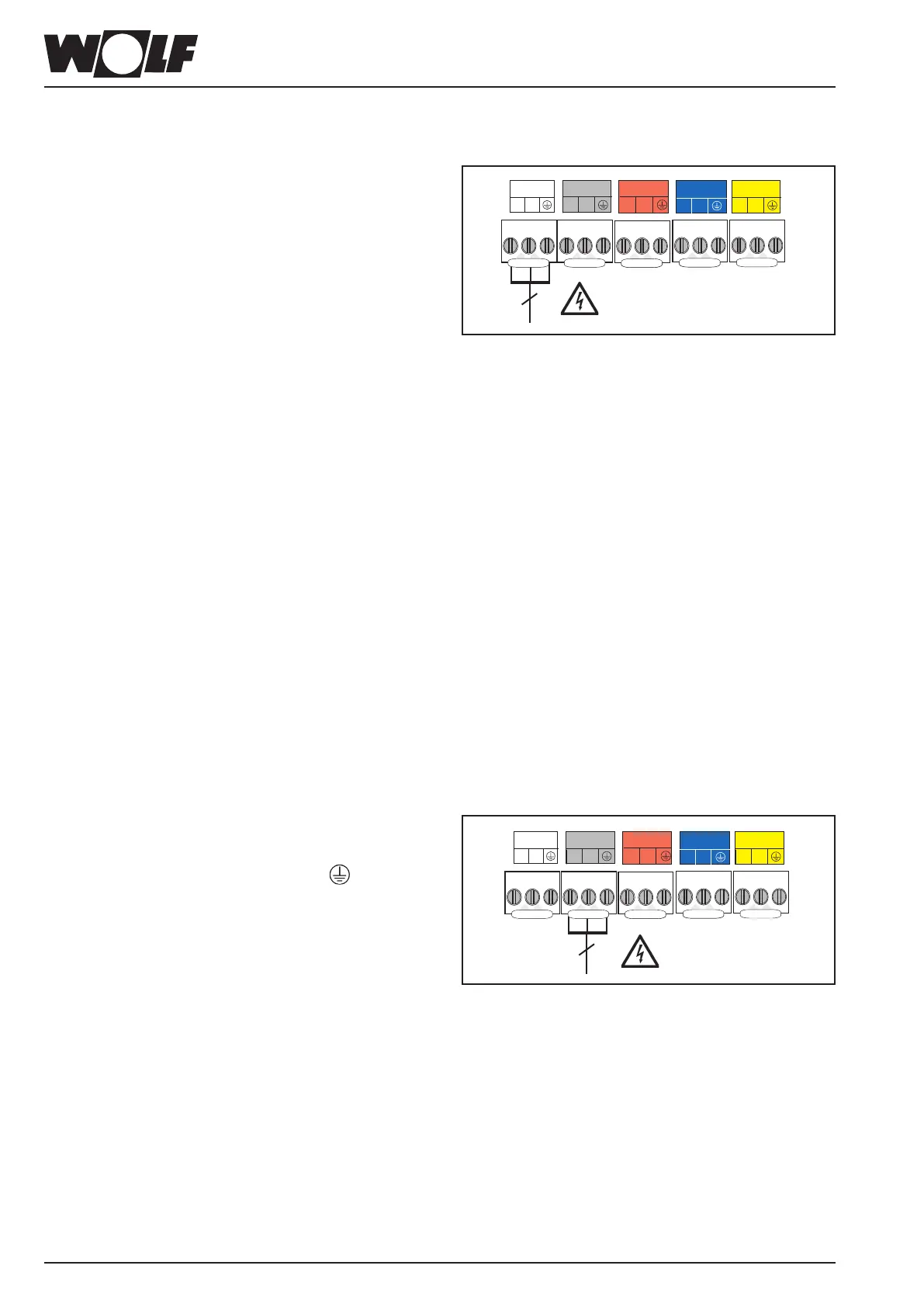

Figure: Mains connection
Netz
N
L1
Z1
N
L1
A1
N
L1
HKP
N
L1
L1
3WV
N
3
Figure: Output Z1 connection
Netz
N
L1
Z1
N
L1
A1
N
L1
HKP
N
L1
L1
3WV
N
