25.1 Overview
Note:
Furtherfunctionsanddescriptionscanbefoundintheinstallation
instructionsforcontractors
ortheuseroperatinginstructionsfortheBM-2programmingunit.

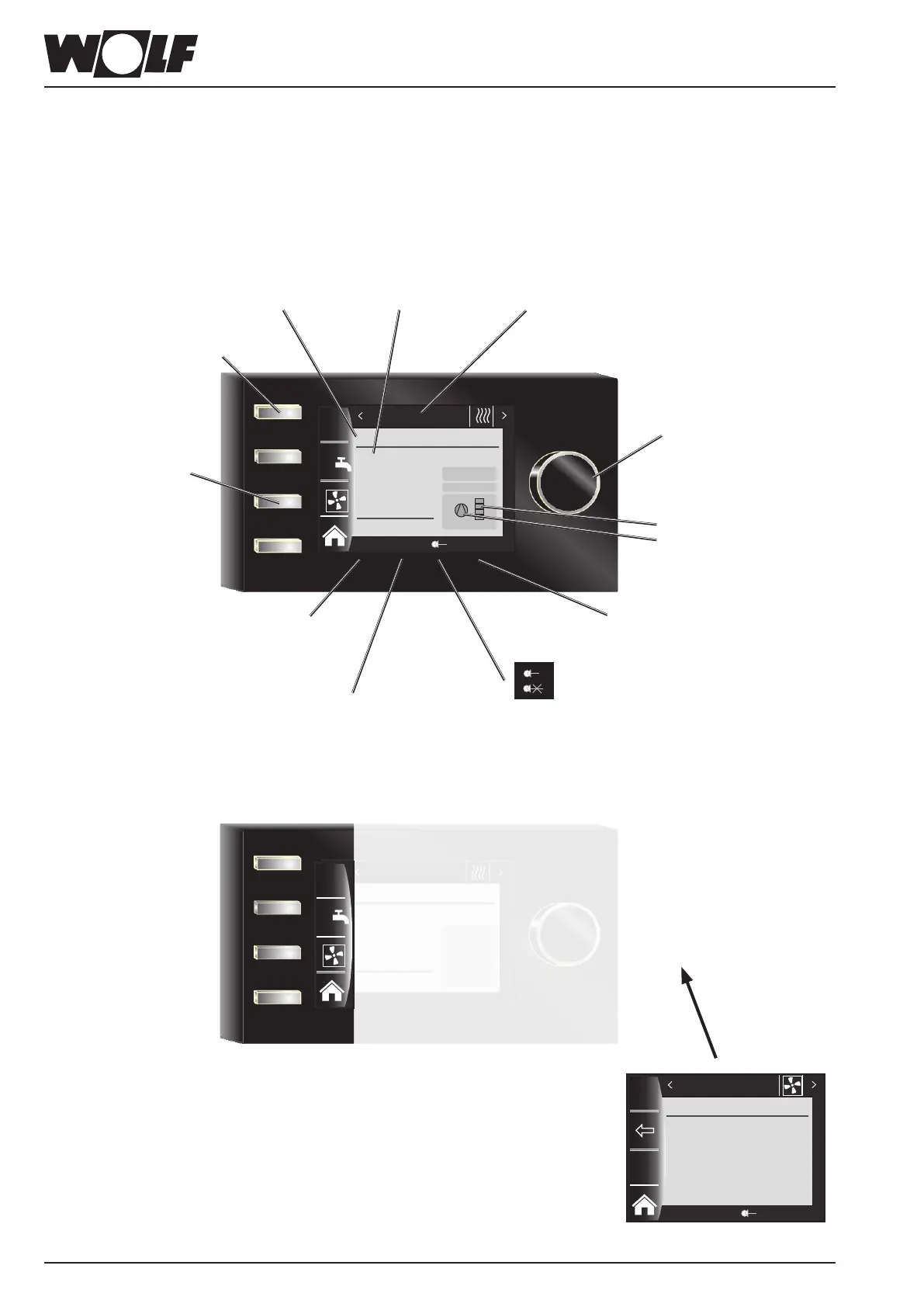

1xDHWheating
Key1
Key2
Key3
Key4
(onthisscreen-nofunction)
20.01.2013
1x
Heatingappliance
Heatingmode
25.2
°C
Boiler
Operation
Pressure
1.94bar
14:12 ISM
PV
1x
Screen header
Time Date
Rotary selector
with pushbutton
function
System data display
(content varies)
Quickstartkeys
Operating mode HP status
eBUS connection available
eBUS connection not available
Displayofoutdoorunitsystem
dataselection
Homekey
- PV increase status (PV)
- Smart Grid function (SG)
- Interface module connection status (ISM)
Electric heater status
Compressor status
(symbol content varies
according to current
appliance output)
20.01.2013
Outdoorunit
Outdoor unit
Currentapplianceoutput27%
Comp.freq. 32Hz
Fanspeed
300rpm
Htgoutput 3.1kW
El.output 0.6kW
14:12 ISM
PV
