Systemcongurations

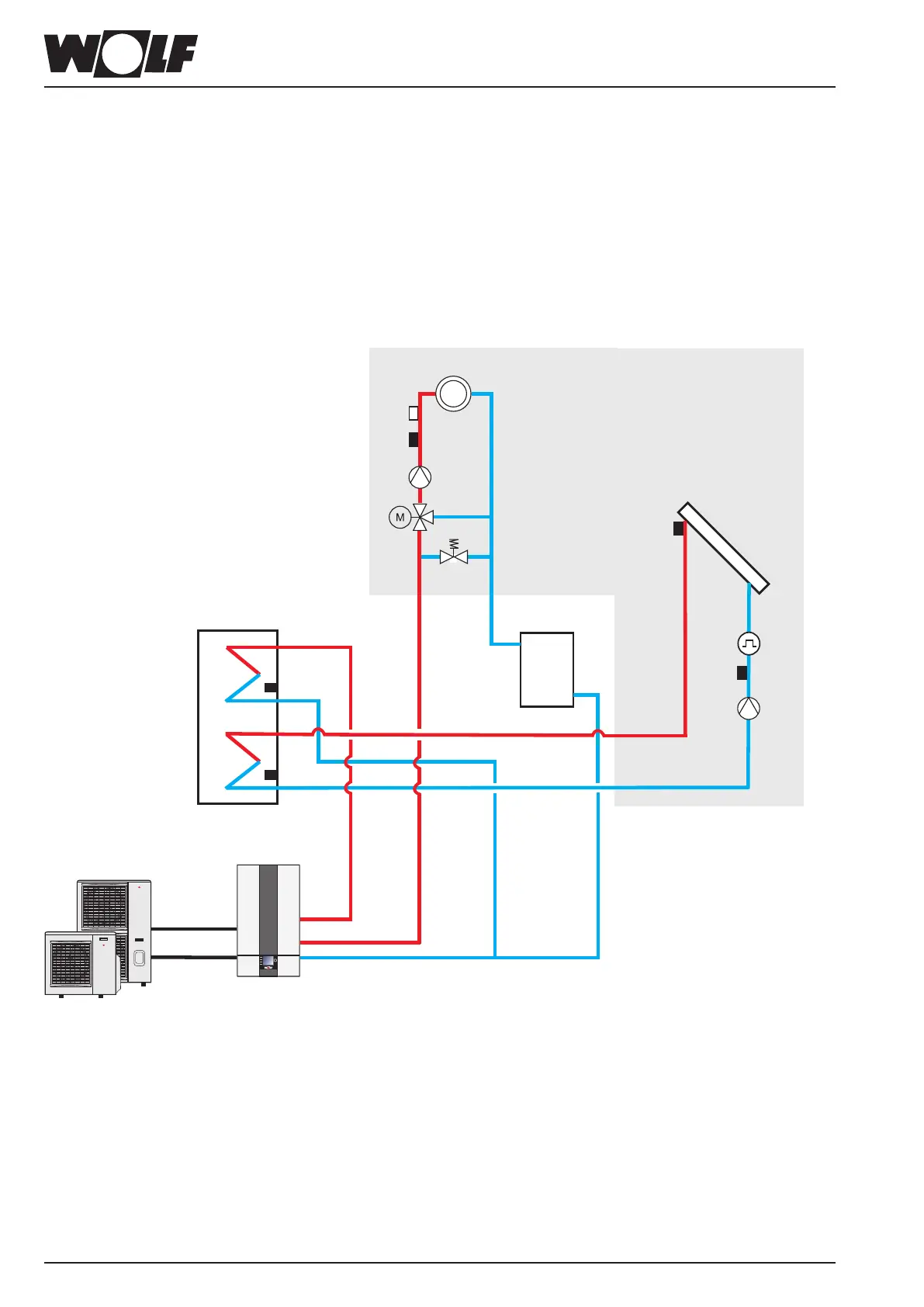

29.2.2 Systemconguration02
BWL-1S(B)
●Splitair/waterheatpump
●Cylinderinseries
●CircuitwithmixerextensionwithMM
●DHWheating
●SolarDHWcylinder
●SolarcircuitextensionwithSM1/SM2
Cylinder in series
A 3-way diverter valve for
central heating/DHW and a
feed/heating circuit pump
are integrated into the
indoor module
Indoor module
MCP
MaxTh
VF
MM
SF
Outdoor module
Solar circuit
SFK
SKP
DFG
RLF
Circuit with mixer
Solar DHW cylinder
SFS
Extension options
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each system individually, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the hydraulic system solutions technical guide.
