Systemcongurations

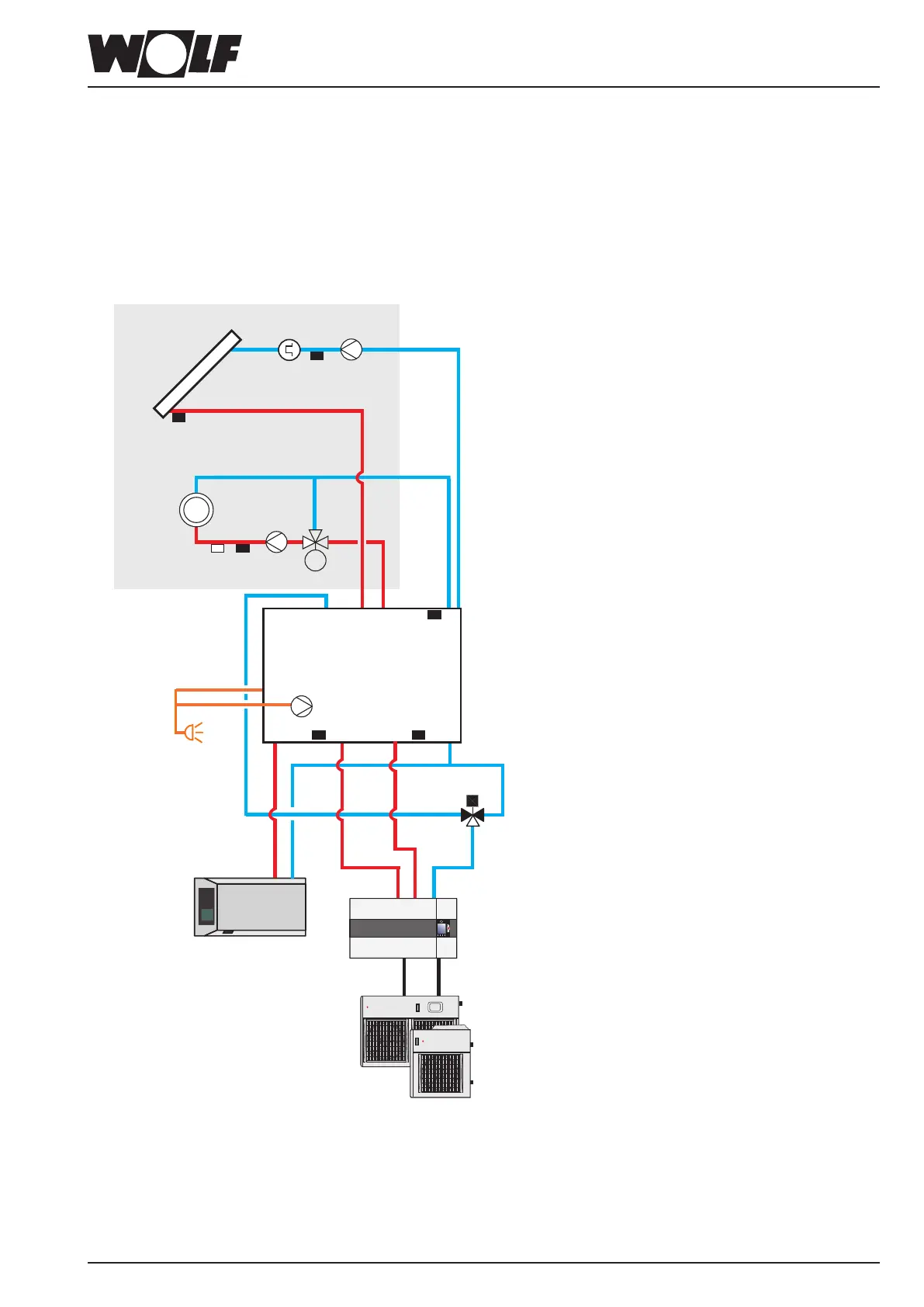

29.2.5 Systemconguration12(BSP-W)
BWL-1S(B)
●Splitair/waterheatpump
● BSP-W
●Solidfuelboiler
●CircuitwithmixerextensionwithMM
●SolarcircuitextensionwithSM1/SM2
●DHWheating
M
Circuit with mixer
MCP
MaxTh
VF
MM
A 3-way diverter valve for central heating/DHW and a feed/heating circuit pump are integrated into the indoor module
Indoor module
Outdoor module
SFK
SKP DFG RLF
BSP-W
DHW
SAF
SF
SFS
Extension options
Solid fuel boiler
3-way diverter valve heating/DHW
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each system individually, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the hydraulic system solutions technical guide.
