Wolf BWL-1S-07 - System Configuration 05

74 3064298_201805
Systemcongurations

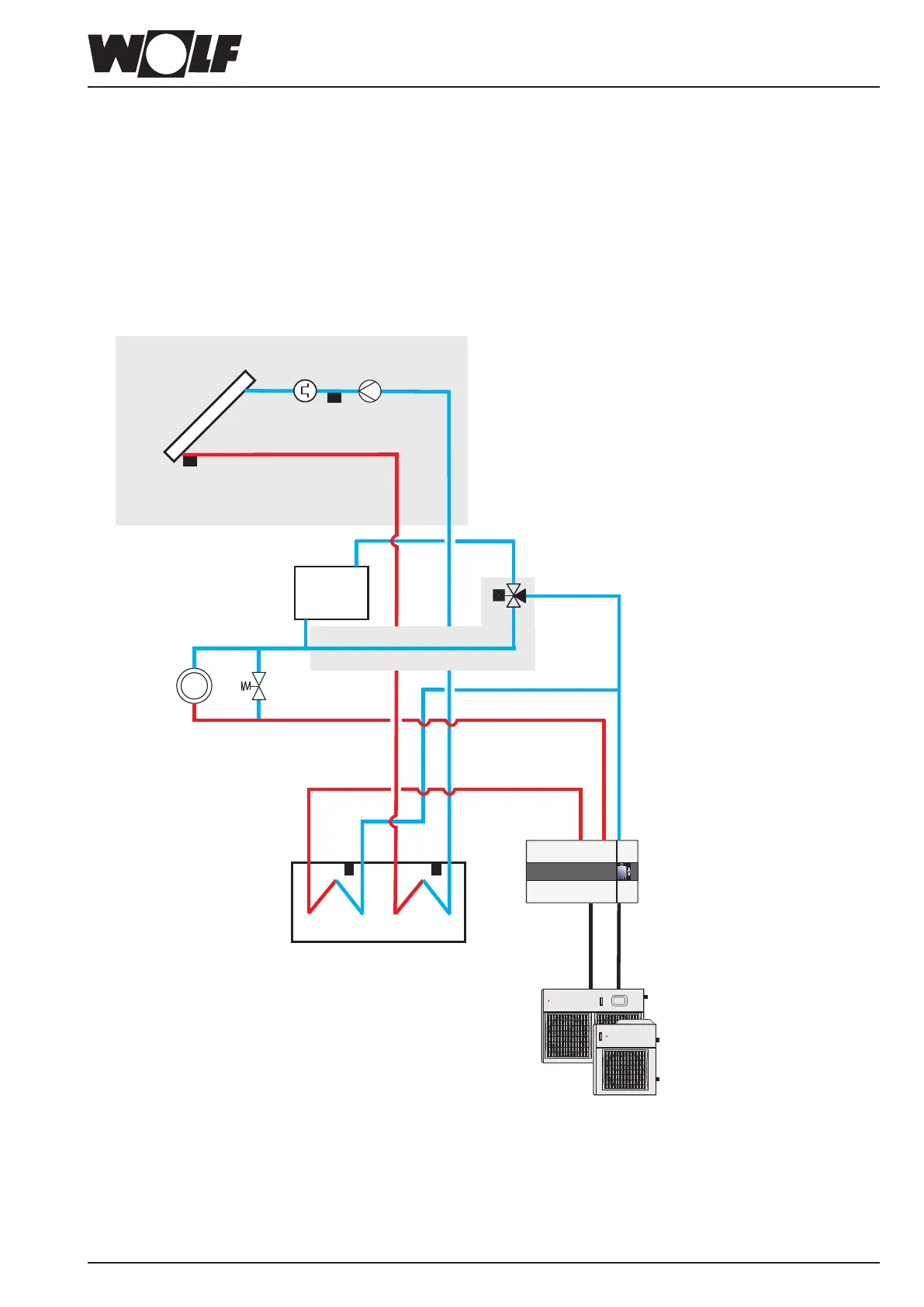

29.2.3 Systemconguration05
BWL-1S(B)
●Splitair/waterheatpump
●Cylinderinseries
●Oneheatingcircuit
●DHWheating
●SolarDHWcylinder
●SolarcircuitextensionwithSM1
●Activecoolingpossible
Cylinder in series
Heating circuit
SF
Solar circuit
Solar DHW cylinder
SFS
SFK
SKP DFG RLF
A 3-way diverter valve for central heating/DHW and a feed/heating circuit pump are integrated into the indoor module
Indoor module
Outdoor module
Extension options
3-way diverter valve heating/cooling
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each system individually, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the hydraulic system solutions technical guide.
