Systemcongurations
29.2.1 Systemconguration01
BWL-1S(B)
●Splitair/waterheatpump
●Cylinderinseries
●Oneheatingcircuit
●DHWheating
●Activecoolingpossible(inconj.withadditional3-waydivertervalveforcooling)

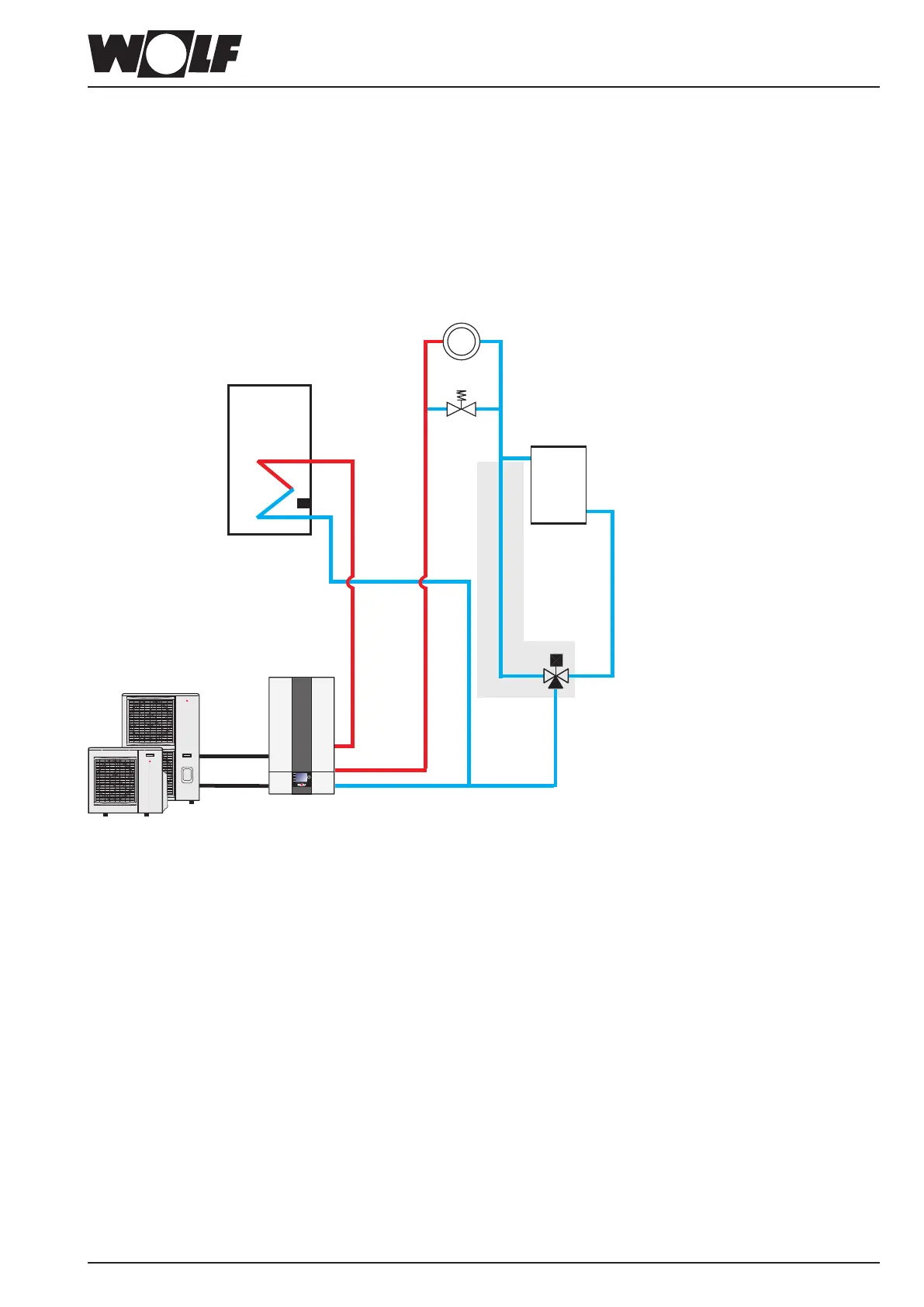

Cylinder in series
Heating circuit
A 3-way diverter valve for
central heating/DHW and a
feed/heating circuit pump
are integrated into the
indoor module
Indoor module
DHW cylinder
SF
Outdoor module
3-way diverter valve
heating/cooling
(with active cooling)
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each system individually, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the hydraulic system solutions technical guide.
