Xerox 6204 User Manual

Diagnostic Prints
Xerox 6204 Wide Format Solution 157
System Administration
7
Diagnostic Prints
The Diagnostic Prints feature enables you to select and print two test patterns which
can be checked when an image quality problem occurs. The use of known-good test
patterns as a standard helps differentiate between problems which are scanner (or
document quality) related and those that are printer related.
Procedure

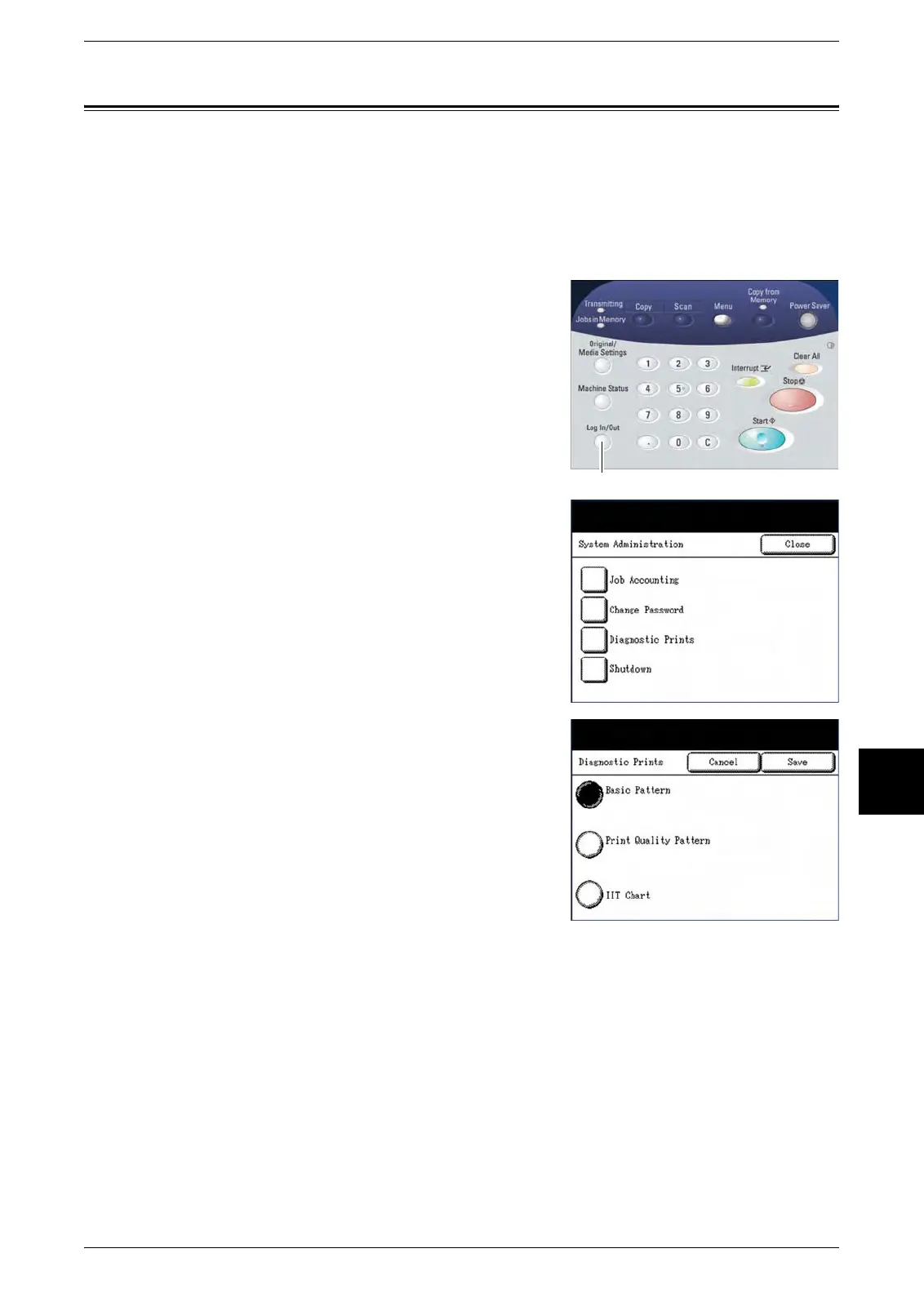

1 Press the <Log In/Out> button.
The machine will enter the System Administration mode
and display the [System Administration] menu.
2 Select [Diagnostic Prints].
The [Diagnostic Prints] screen will display.
3 Select the appropriate option:
Basic Pattern
Print Quality Pattern
IIT Chart
4 Select [Print].
The selected item will print.
<Log In/Out>
