Xerox 6204 - Paper Jams in Upper Unit

10 Problem Solving
204 Xerox 6204 Wide Format Solution
Problem Solving
10

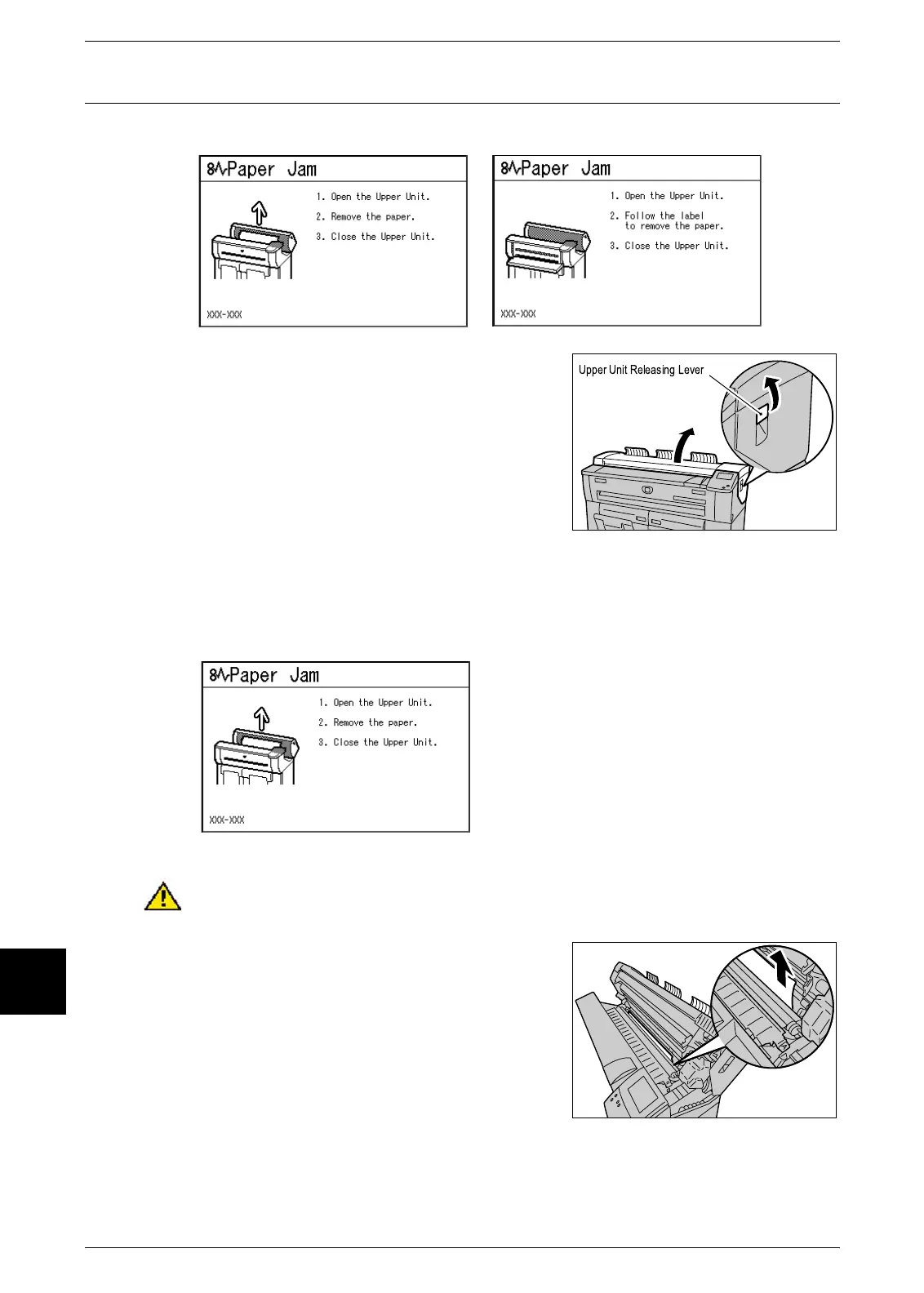

Paper Jams in Upper Unit
The following describes how to clear paper jams that occur in the upper unit.
1 Lift up the upper unit release lever to open the
upper unit.
2 Check the state of the jammed paper, and solve the problem as follows.
The following message is displayed.
WARNING: Never touch a labeled area on hot or sharp parts. You can get burned or injured.
Remove the jammed paper through the opening.
• Gently remove the paper, taking care not to
tear it.
• If the paper is torn, make sure to remove all
torn paper from the machine.
Upper Unit Releasing Lever
