Media Settings
Xerox 6204 Wide Format Solution 43
Product Overview
2

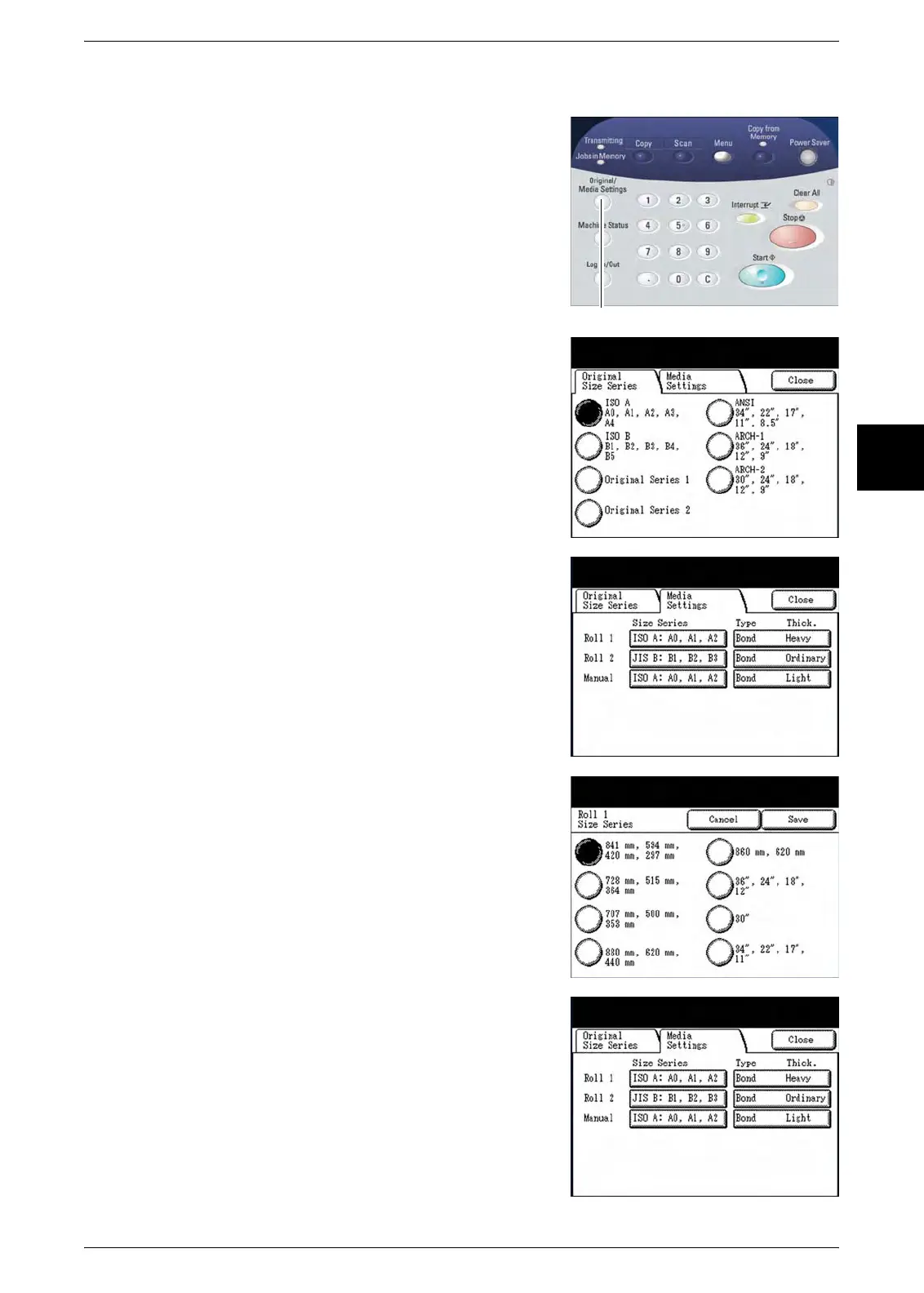

Procedure
1 Press the <Original/Media Settings> button on
the control panel.
The [Original Size Series/Media Settings] screen will
display, with the [Original Size Series] tab on top.
2 Select the [Media Settings] tab to display the
available options.
3 Under the Size Series heading, select the button
for the media you are setting up, that is, either
Roll 1, Roll 2, or Manual.
The corresponding setup screen will display, for
example, [Roll 1 Size Series].
4 Select the appropriate size series button, and
then press [Save].
The [Media Settings] tab will redisplay.
5 Under the Type and Thickness headings, select
the button for the new media you are setting up,
e.g., Roll 1, Roll 2, or Manual.
The corresponding [Media Type/Thickness] screen
will display.
<Original/Media Settings>
