Xerox COLORQUBE 8570 Service Manual

October 2012
4-22
ColorQube 8570/8870 Service Manual
REP 2.3
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
13. Move the Printhead Tilt Spring from its position on the Printhead to release its tension and
hook it behind the notch as shown in Figure 5.

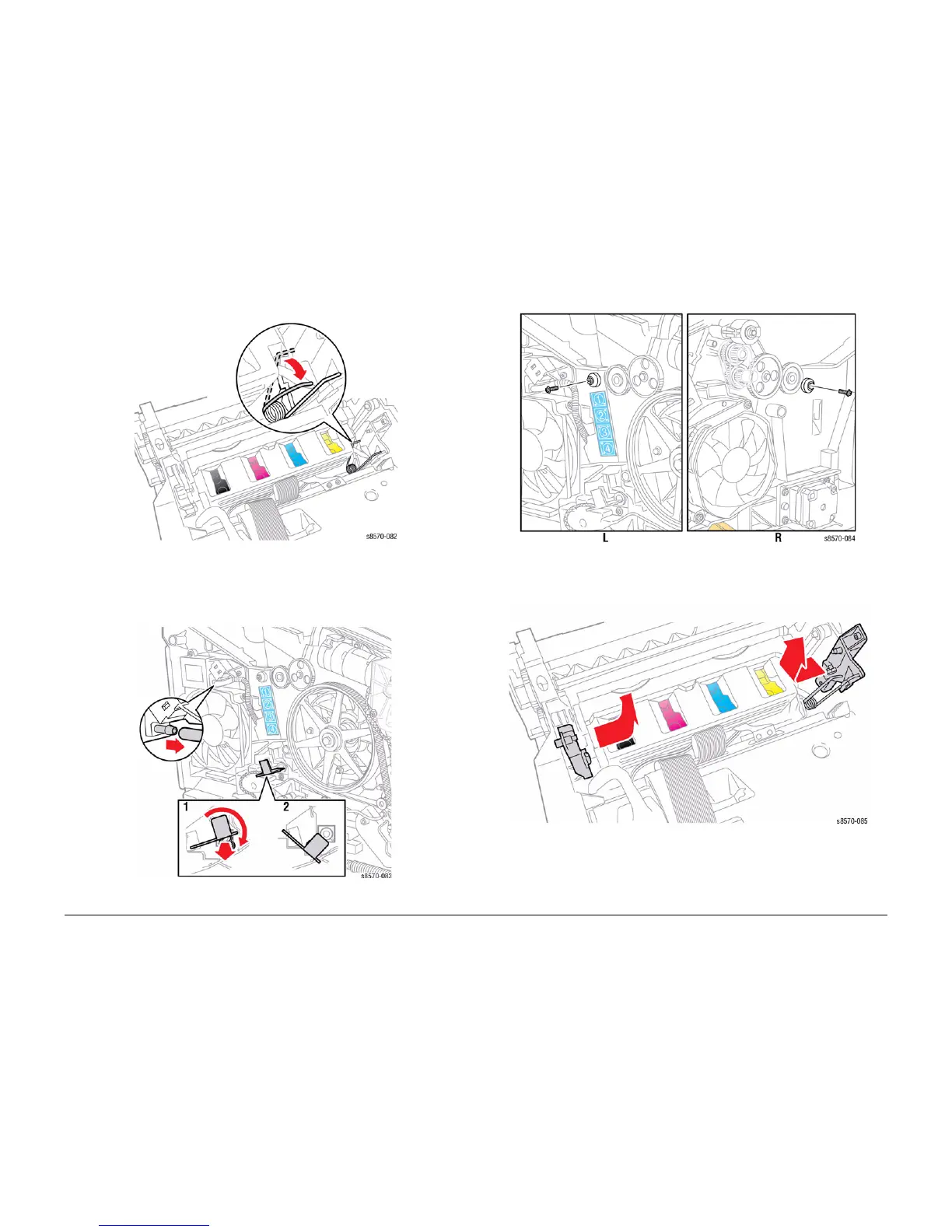

Figure 5 Releasing the Printhead Tilt Spring
14. Disconnect the Air Hose from the Purge Pump.
15. Pull the X-Axis Bias Spring and Hook out slightly, and then rotate downward to allow it to
rest in detents provided on the frame as shown in Figure 6.
Figure 6 X-Axis Bias Spring Hook
16. Remove 1 screw (plastic, T-20) that secures each Restraint.
Figure 7 Removing the Printhead Restraint Screws
17. Shift the Restraint inwards toward the Printhead while lifting it.
Figure 8 Removing the Printhead Restraints

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
