Xerox COLORQUBE 8570 Service Manual

October 2012
8-31
ColorQube 8570/8870 Service Manual
Print Process
Theory of Operation
Xerox Internal Use Only - Revised, 3rd Revision

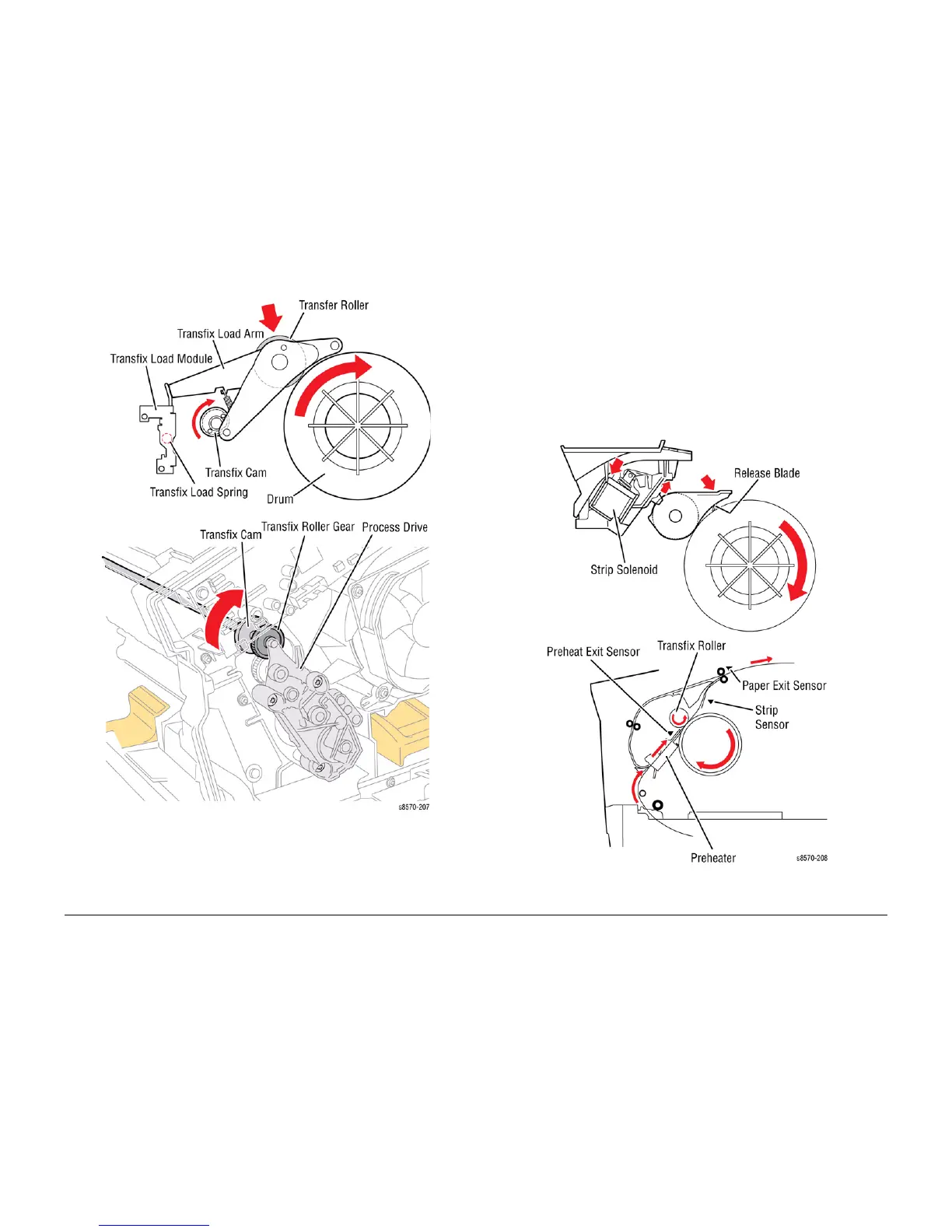

Figure 19 Transfix Components
After the leading edge of the media is beyond the Stripper Blade, the Stripper Solenoid is de-
energized. Once the Solenoid is de-energized, the Solenoid Return Spring provides force to
move the Solenoid Plunger out of the Solenoid Coil which rotates the Stripper Carriage back to
its Ready position.
The Deskew Rollers are not driven during transfixing. The Media Drive rotates the Exit Rollers
in the correct direction to pull the paper out with the Deskew Clutch deenergized.
As the Process Drive lifts the Transfix Roller, the Exit Rollers transport the media into the Exit
Module. The media is then fed out over the Ink Loader until the trailing edge is at the nip of the
Exit Module Roller.
Figure 20 Exit Path

Xerox COLORQUBE 8570 Specifications

General

Print Technology	Solid Ink
Monthly Duty Cycle	Up to 85, 000 pages
First Page Out Time (Color)	As fast as 5 seconds
First Page Out Time (B&W)	As fast as 5 seconds
Memory (Maximum)	1 GB
Output Capacity	350 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 40 ppm color / 40 ppm black
Connectivity	USB 2.0, Ethernet
Print Languages	PCL 6, PostScript 3, PDF
