Xerox Phaser 6600 Service Manual

Error Troubleshooting
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
2-11
Service Mode Menu Maps
Use these maps to assist you in navigating through the diagnostic routines.

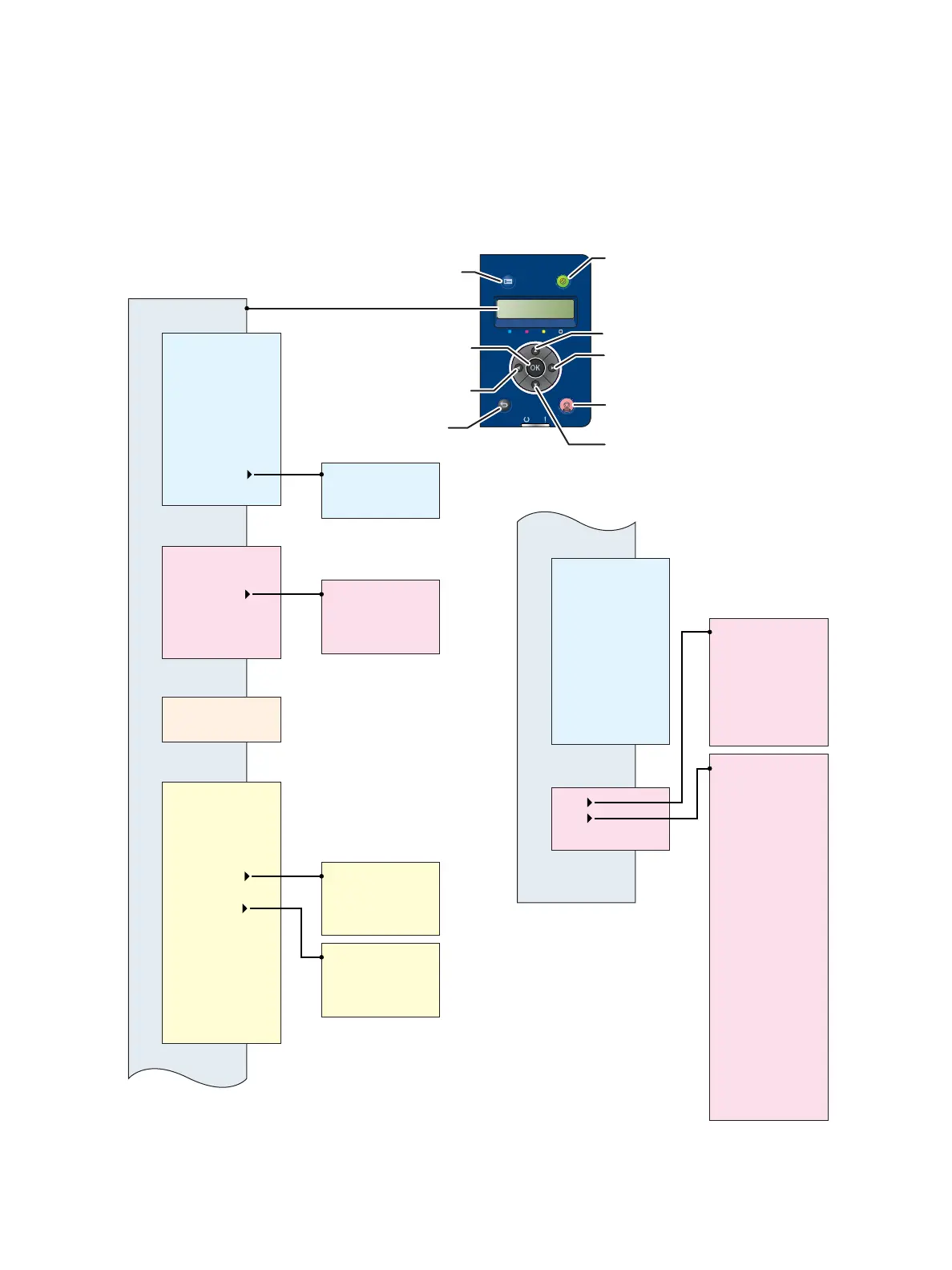

Phaser 6600 Service Mode Menu Map
ESS Diag
Engine Diag
Print Info
Installation
All Test
FlashROM Test
EEPROM Test
DRAM Test
MAC+PHY Test
ASIC Test
Engine Test
Hard Drive Test
USB Host Test
RTC Test
TEST Mode
Single Step
Get Device Info
Sensor Test
Monitor Test
NVM Settings
ROS Exposure
Dew Prevention
Initial IU
Edit NVM
Save NVM to ESS
Load NVM from ESS*
Initialize Slave
SerialNo.
PagePack
HexDump
Tone Correction
Pixel Counter
Configuration
XCPT Mode
Print Counter
Copy Counter MtoB
Copy Counter BtoM
Clear All NVM
Clear JobHistory
Clear AuditronPV
Hard Drive Erase
Clear DeviceData
Print Service
Copy Service
FAX Service
Scan Service
Info Page
Print Settings
Dip Switch0
Dip Switch1
Dip Switch2
Dip Switch3
* This item is displayed only
when the NVM backup data
has been stored by executing
[SaveNVM to ESS].
s6600-220
Test Print
Parameter
Exit Mode
No Image IOT
Pattern IOT
Grid2 ESS
Cyan20% ESS
Magenta20% ESS
Yellow20% ESS
Black20% ESS
CMY 20% ESS
Gradation ESS
TonerPalletCheck
ContaminationChk
Regi
Life
Print
SlowScan KtoP
FastScanSmpBTray
FastScanSmpTray1
FastScanSmpTray2
FastScanDupBTray
FastScanDupTray1
FastScanDupTray2
Fuser PV
Fuser Heattime
Trans Total PV
TransRotateTime
Y IU PV
M IU PV
C IU PV
K IU PV
Y IU RotateTime
M IU RotateTime
C IU RotateTime
K IU RotateTime
Y IU Pixel
M IU Pixel
C IU Pixel
K IU Pixel
Y Toner DispTime
M Toner DispTime
C Toner DispTime
K Toner DispTime
Waste Box PV
Waste Box Pixel
Scroll up
Scroll down
Accept the
menu selection
Go up one
level
Go down one level
or move right
Go up one level
or move left
Power Saver On/OffAccess the
system menu
Cancel

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
