Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-131
Right Cover Assembly
PL19.1.97
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Waste Cartridge. (page 4-50)
3. Remove the Waste Cartridge Lock. (page 4-39)
4. Remove the Right Side Door Assembly. (page 4-130)
5. Remove the Front Door Assembly. (page 4-128)
6. SFP only: Remove the screw (silver, tapping, 8mm) that attaches the Right Top Cover to the frame.
Note: For the next two steps, refer to the inset in the illustration on page 4-133.
7. MFP only: Remove the screw (silver, tapping, 8mm) that attaches the Rear Right Pole Cover (PL
19.1.35), then release the hook and remove the cover.
8. MFP only: Remove the screw (silver, tapping, 8mm) that attaches the Front Right Pole Cover (PL
19.1.61) and remove the cover.
9. Remove the two screws (silver, 6mm) at the rear and the screw (silver, tapping, 8mm) inside the
rear that attach the rear of the Right Cover Assembly.

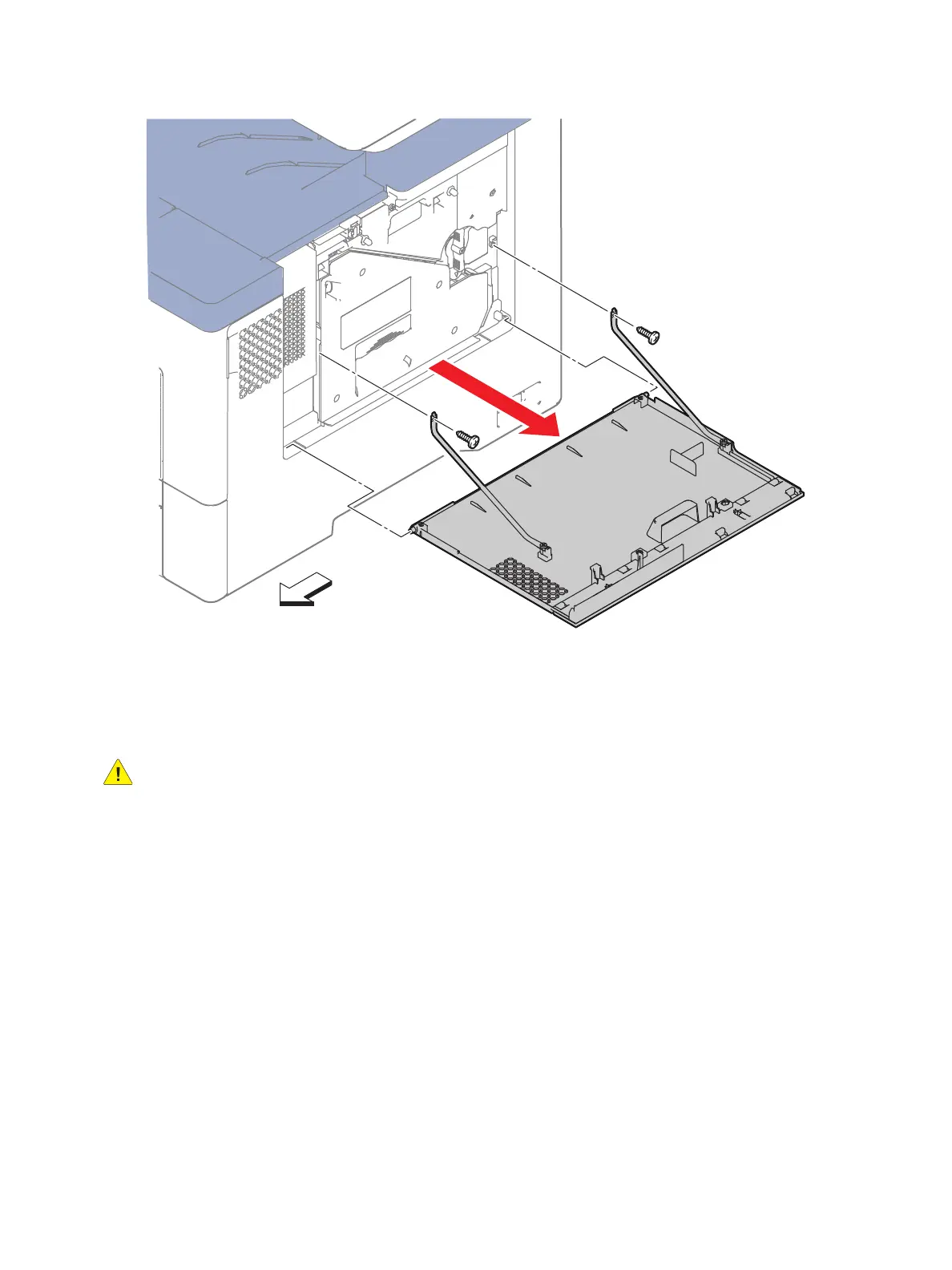

s6600-090
Front
MFP

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
