Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-50
Waste Cartridge
(PL8.1.7)

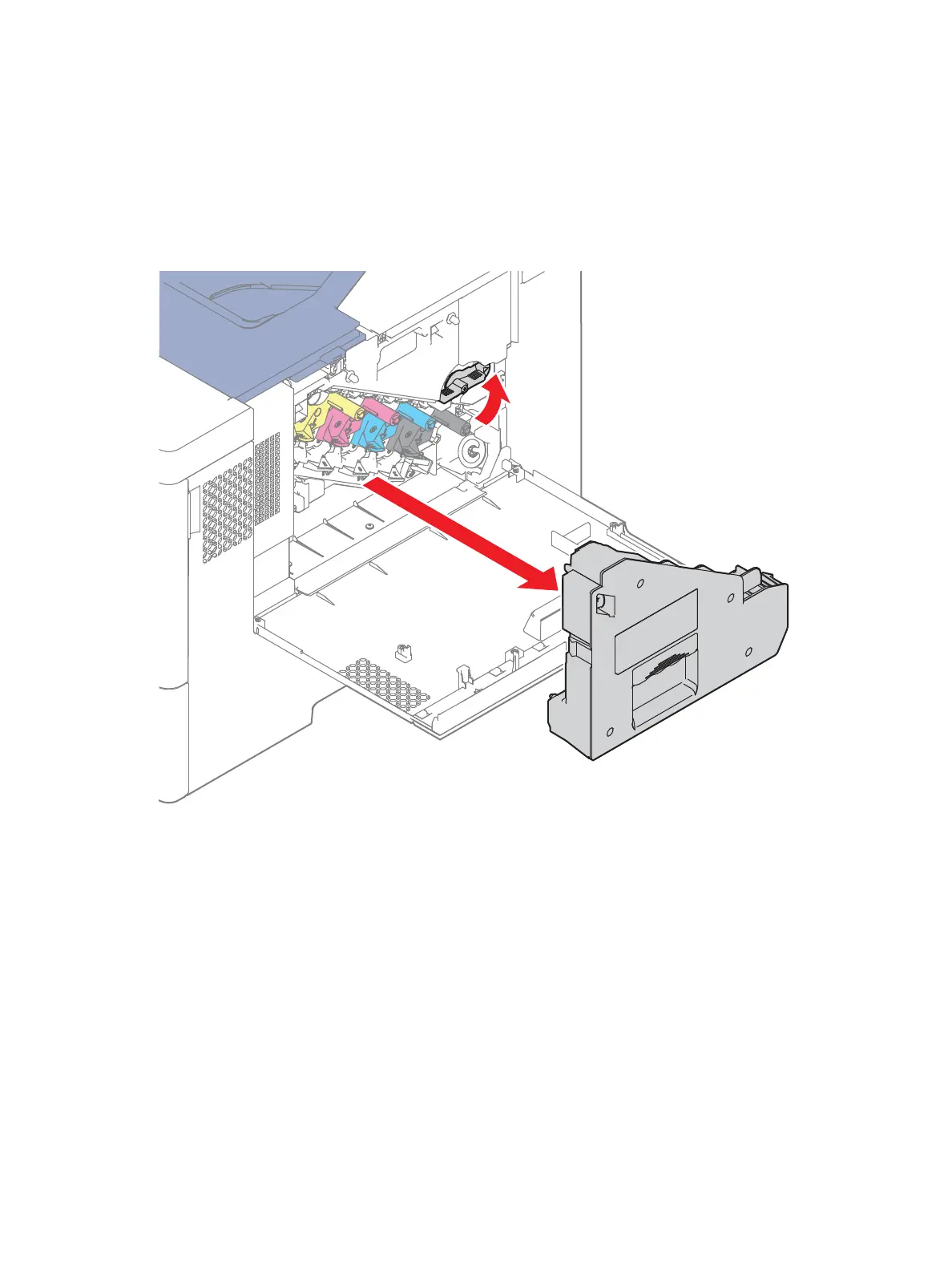

1. Open the Right Side Door (PL19.1.96).
2. Rotate the Waste Cartridge Lock (PL6.1.5) counterclockwise.
3. Pull out the Waste Cartridge (PL8.1.7) toward you.
s6600-167
