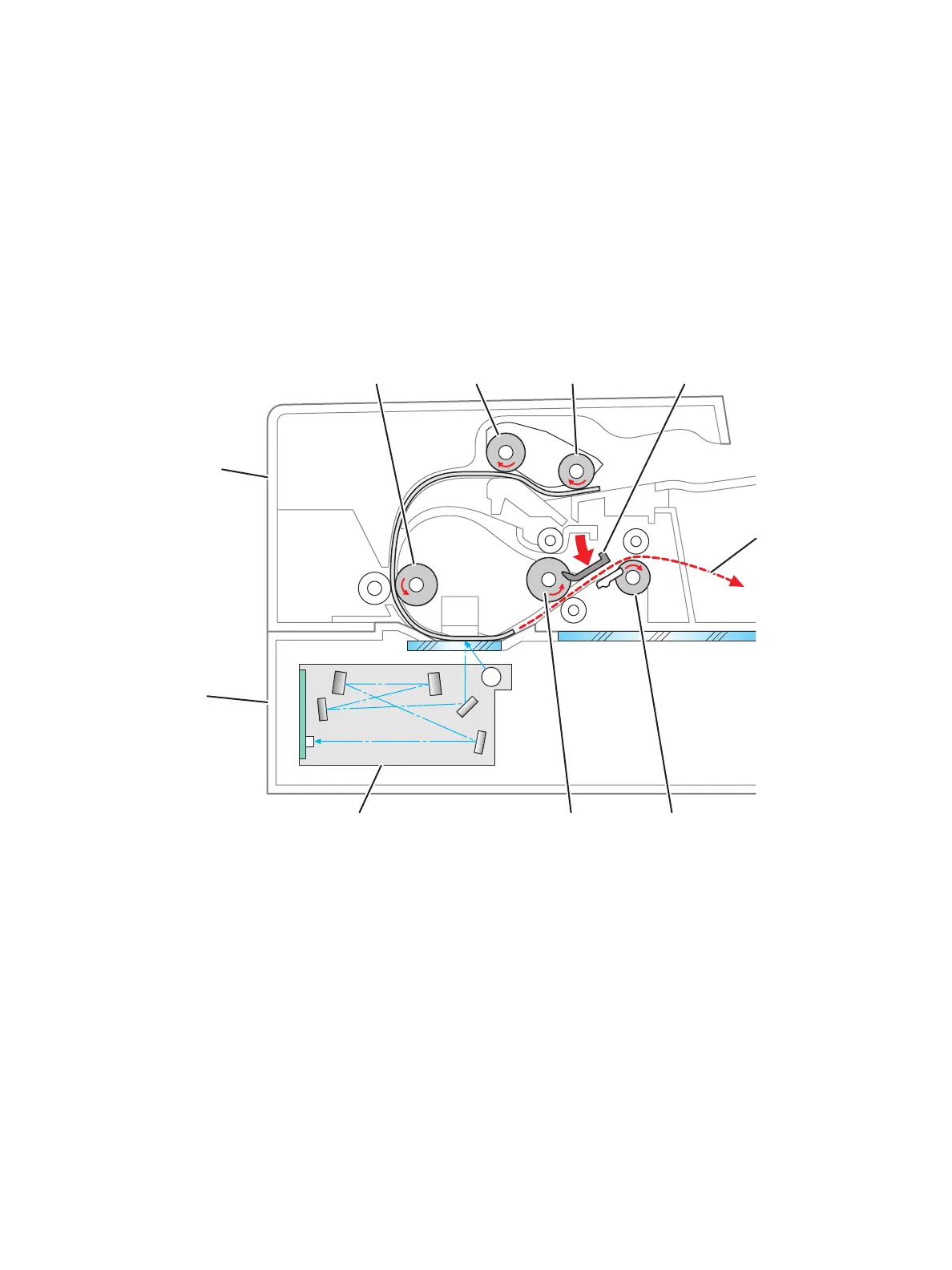

Paper Path of DADF (Simplex)
When the sheet feeding from the Document Feeder Tray of the DADF starts, the Nudger Roll and the
Feed Roll that rotate driven by the torque from the DADF Motor. The sheet is nipped between the Feed
Roll and the Retard Pad while being fed into the DADF.
Inside the DADF, the sheet is fed by the Takeaway Roll that rotates by the torque from the DADF Motor
to the Scanner Home (CVT: Constant Velocity Transport) Position in the Carriage Assembly, and is
scanned.
After being scanned, the sheet is ejected to the Document Output Tray of the DADF by the Transport
Roll and Exit Roll that rotates by the torque from the DADF Motor.
s6600-211
Pressure PlateNudger RollerFeed RollerTakeaway Roller
DADF Assy
IIT Assy
Exit RollerTransport RollerCarriage Assy
Document
To Next Page
