Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-37
Drive
The Drive Assembly (PL3.1.1) consists of the following parts.
•Main Motor
The DC motor that drives the Heat Roller in the Fuser, the Exit Roller Assembly in the exit section,
the drum in the Imaging Unit of each color, the magnet Roller in the Imaging Unit K (black), and
the belt and cleaner in the Transfer Belt Assembly.
• Paper Transport Motor
The DC motor that drives each roller of the paper feed section (feed from the Bypass Tray/tray,
registration, and duplex feed). Also, drives the Drive Shaft Assembly and the Auger in the Waste
Cartridge via the gear.
•Developer Motor
The DC motor that drives the magnet Roller in the Imaging Unit Y/M/C (Yellow/Magenta/Cyan).
•Takeaway Clutch
Transfers the drive of the Paper Transport Motor to the Takeaway Roller.

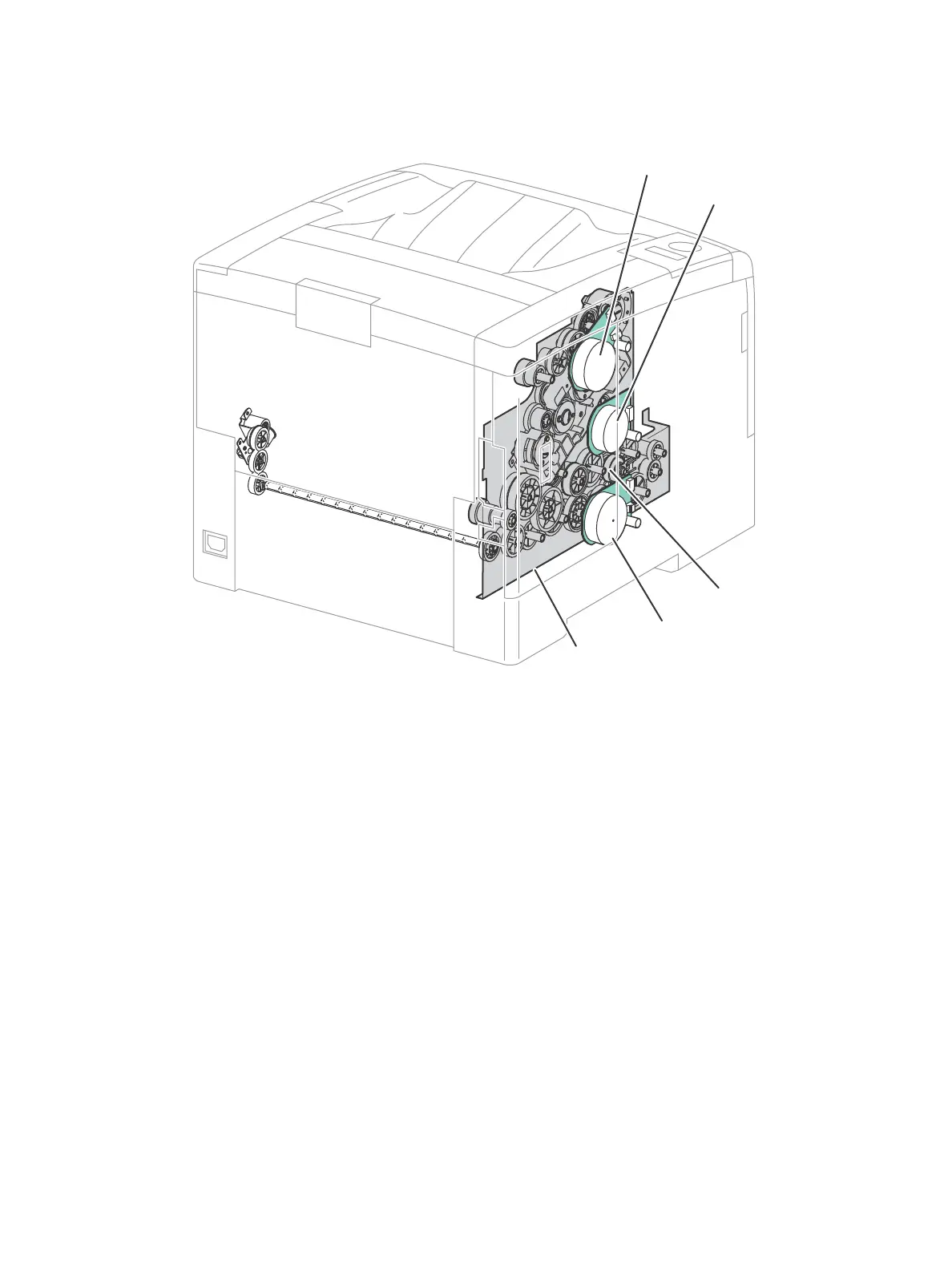

s6600-263
Drive Assembly
Developer Motor
Takeaway Clutch
Paper Transport Motor
Main Motor

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
