Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-86
Regi Chute Assembly / Rear Hinge Bracket
PL15.2.1 / PL14.1.4
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Left Transfer Belt Guide Assembly. (page 4-40)
2. Remove the CTD Sensor Assembly. (page 4-41)
3. Remove the Drive Shaft Assembly. (page 4-21)
4. Remove the Lower Regi Chute / Opt 550 Regi Chute. (page 4-85)
5. Remove the Regi Clutch Assembly. (page 4-81)

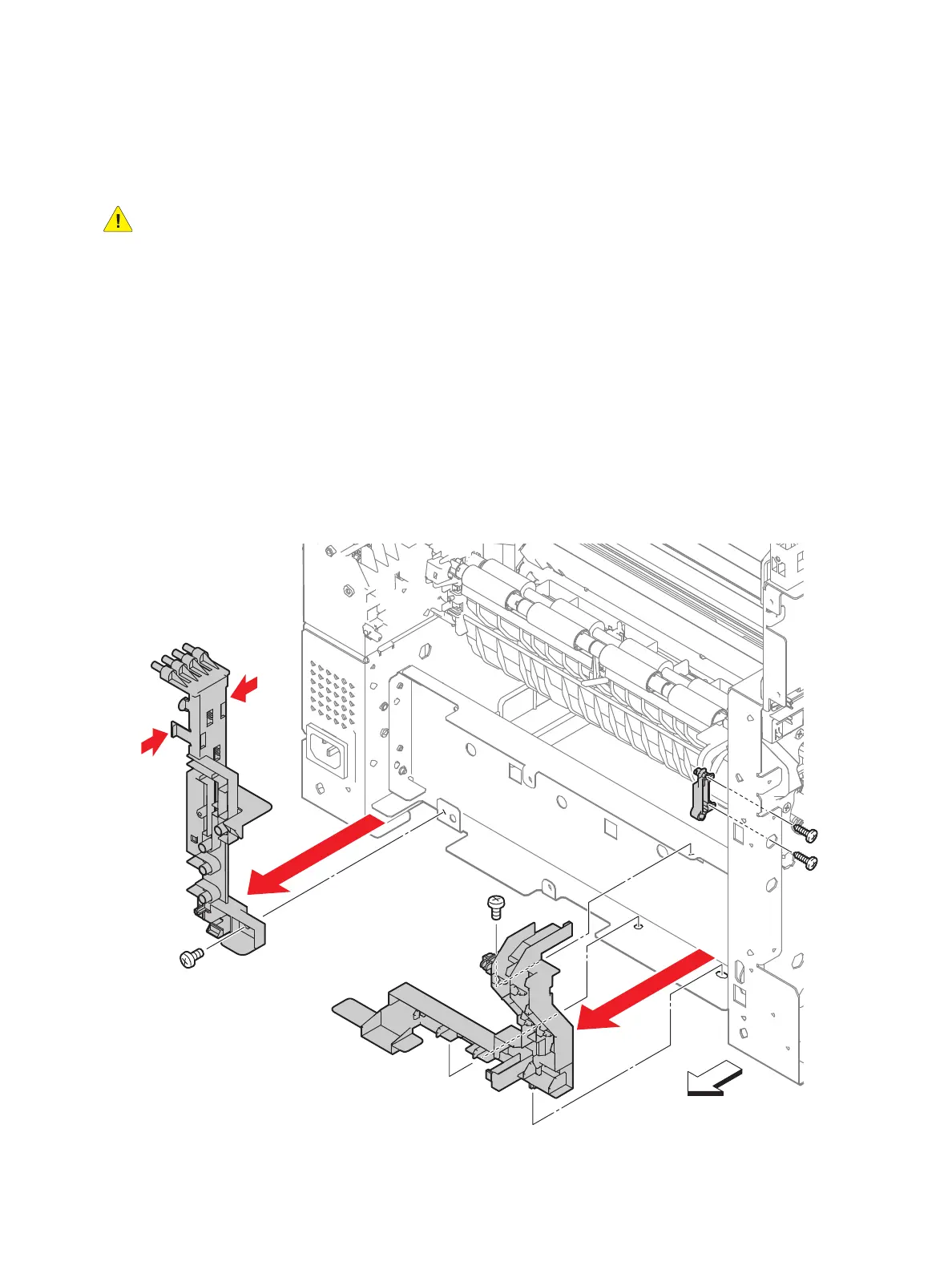

6. Remove the Inner Transfer Wire Housing Assembly (PL18.1.30) by removing the screw (silver,
6mm) near the bottom, and by releasing the two hooks on the sides.
7. Release the harness from the PH Harness Guide (PL18.1.29).
8. Remove the PH Harness Guide by removing the screw (silver, 6mm) that attaches the PH Harness
Guide and by releasing the two hooks.
9. Remove the two screws (silver, tapping, 8mm) that attach the Rear Hinge Bracket (PL14.1.4) and
remove the Rear Hinge Bracket.
s6600-078
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
