Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-39
Dispenser
Upper Dispenser Motor Assembly (PL5.1.1) drives the paddle in the Toner Cartridge and the auger of
the Dispenser Assembly and feeds toner to the development section in the Imaging Unit.
The Upper Dispenser Motor Assembly consists of the following parts.
• Toner Dispense Motor (Y,M)
Drives the yellow and magenta Toner Cartridges and the Dispenser Assembly via the gear.
• Toner Dispense Motor (C,K)
Drives the cyan and black Toner Cartridges and the Dispenser Assembly via the gear.
Toner Cartridges Y (PL5.1.8), M (PL5.1.9), C (PL5.1.10), K (PL5.1.11) store toner and a small amount of
carrier.
The Dispenser Assemblies (Y (PL5.1.4), M (PL5.1.5), C (PL5.1.6), K (PL5.1.7)) feed toner to the developer.

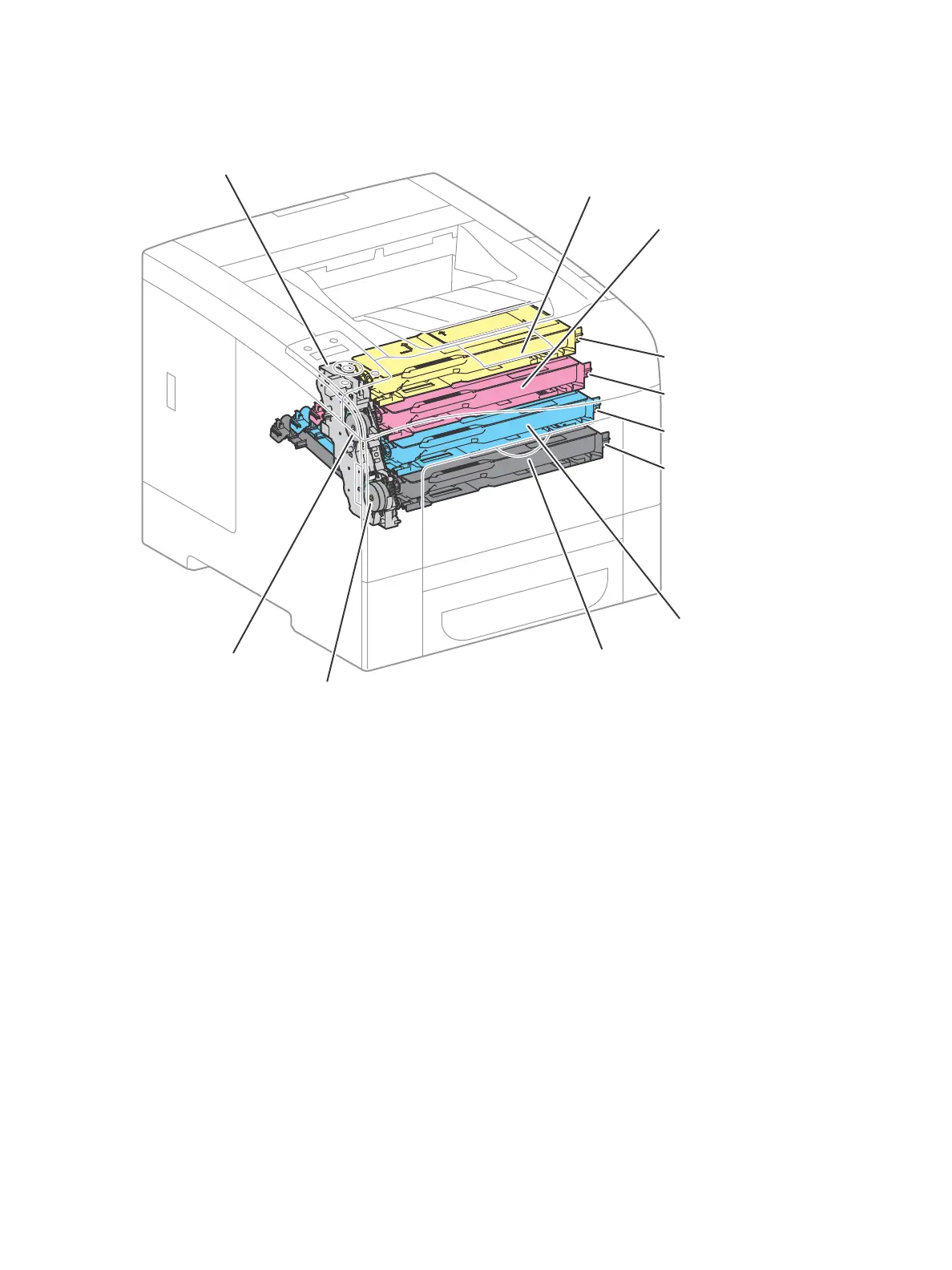

s6600-261
Upper Dispenser Motor Assembly
Toner Dispense Motor (Y, M)
Toner Cartridge (Y)
Toner Cartridge (M)
Toner Cartridge (C)
Toner Cartridge (K)
Dispenser Assembly (Y)
Dispenser Assembly (M)
Dispenser Assembly (C)
Dispenser Assembly (K)
Toner Dispense Motor (C, K)

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
