Feeding to Registration Section
Paper is fed to the printer’s Registration section from either the Bypass Tray or from the paper
cassettes.
A sheet coming from the Bypass Tray is fed to the registration section by the Takeaway rollers, TA1,
TA2, and TA3, all driven by the Paper Transport Motor.
The sheet coming from the paper cassette passes through the chute directly and is fed to the
registration section.

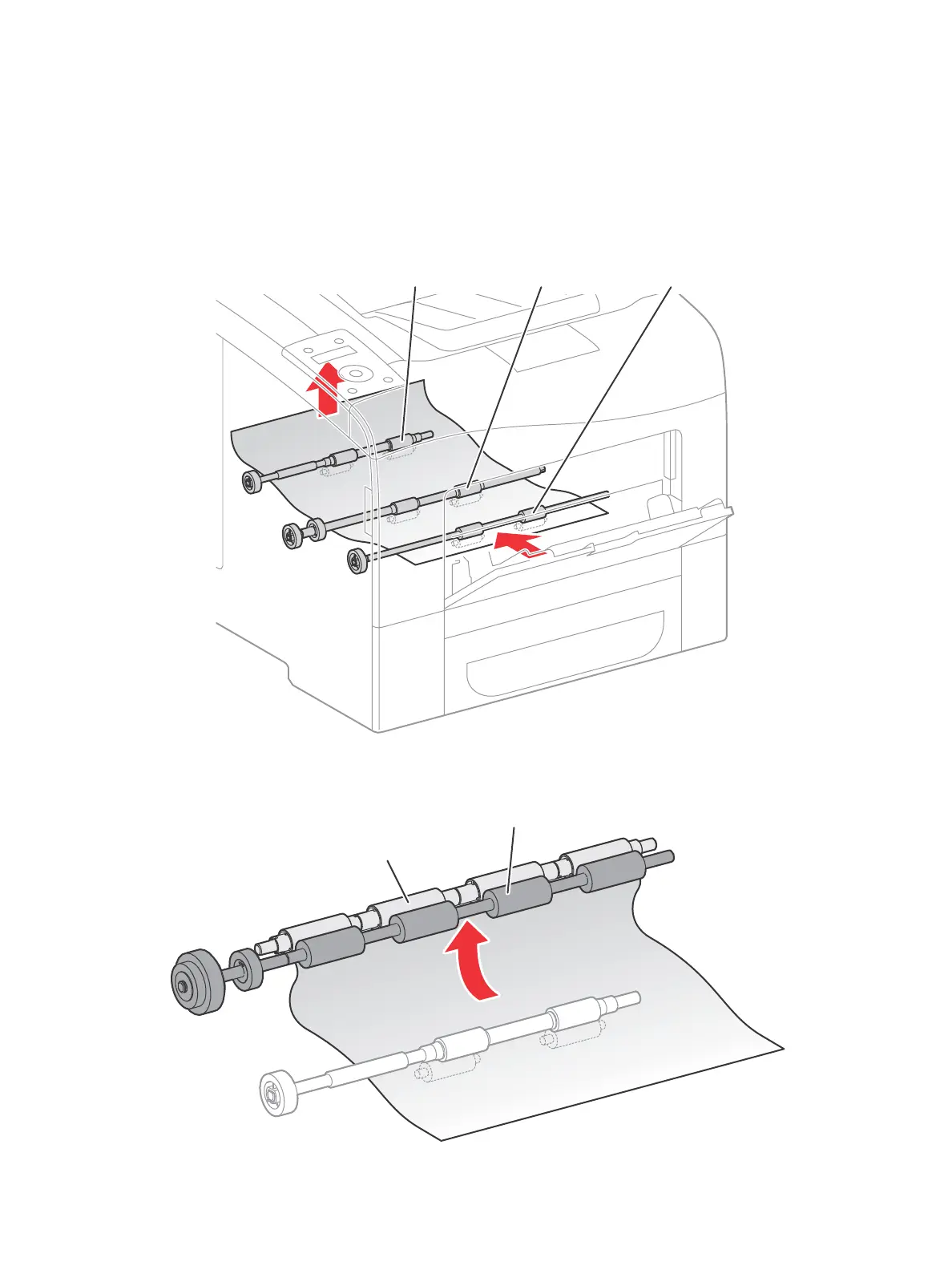

s6600-269
TA1 Roller AssemblyTA2 Roller AssemblyTA3 Roller Assembly
s6600-268
Metal Registration Roller
Rubber Registration Roller

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
