Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-30
Lead-edge Registration
When a sheet fed out of the Bypass Tray or cassette directly reaches the toner transfer section, the
toner image may not be transferred at the correct position on the sheet due to misalignment of lead
edges in the Bypass Tray or Tray.
To avoid this problem, the lead edge position of the sheet needs to be corrected at the registration
section before the sheet is forwarded to the toner transfer section.
By thrusting the edge of the sheet fed out of the Bypass Tray or Tray against the Regi Roller that is
locked, the lead edge position of the sheet is corrected.
Feeding From Registration Section
The sheet is fed to the toner transfer section by the rotation of the Regi Roller at the proper timing,
after the lead edge position of the sheet fed is corrected in the registration section.
The Regi Roller is rotated by the drive from the Paper Transport Motor via the Regi Clutch.

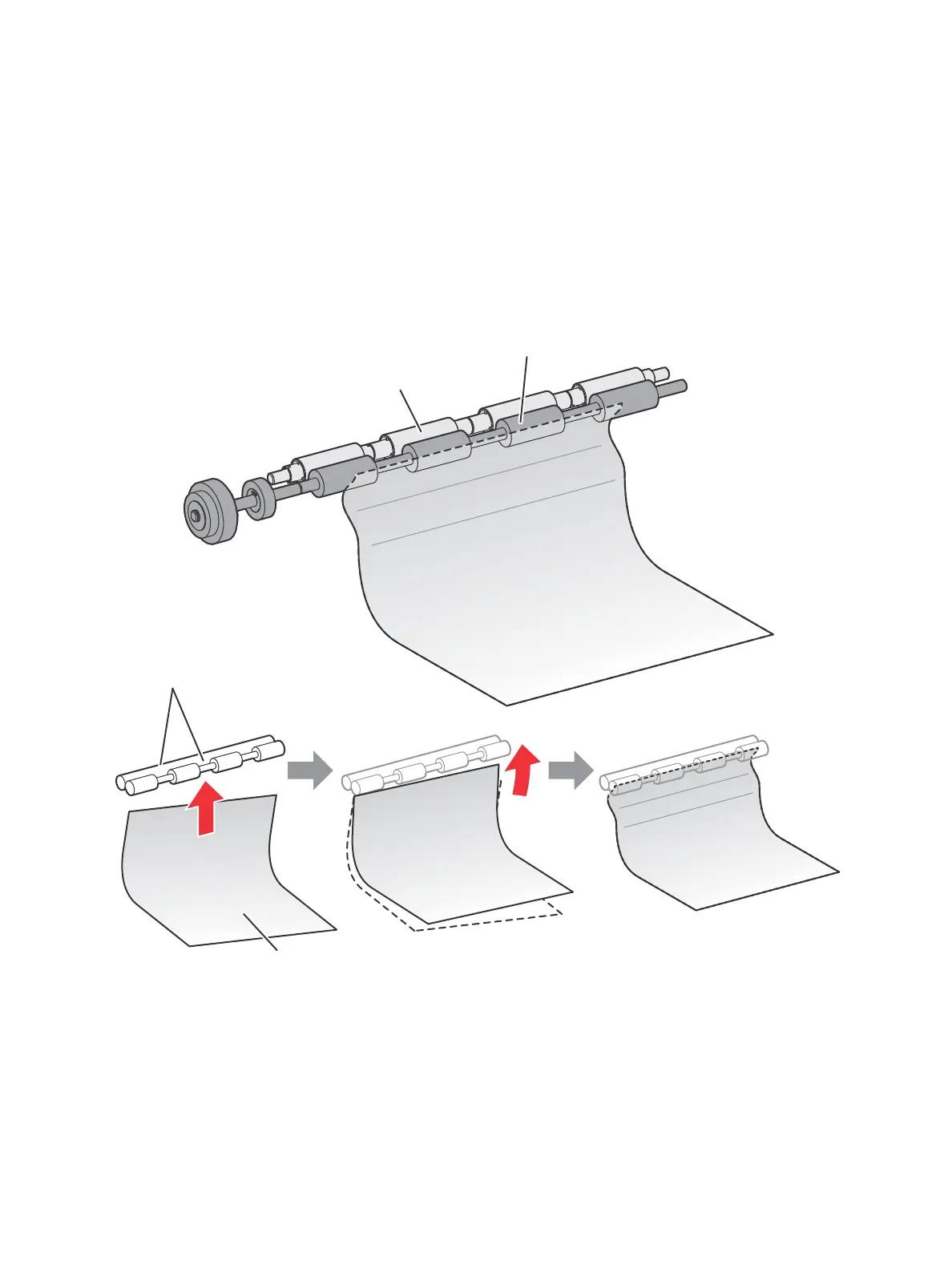

s6600-267
Metal Registration Roller
Rubber Registration Roller
Registration Rollers
Skewed Paper

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
