Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-43

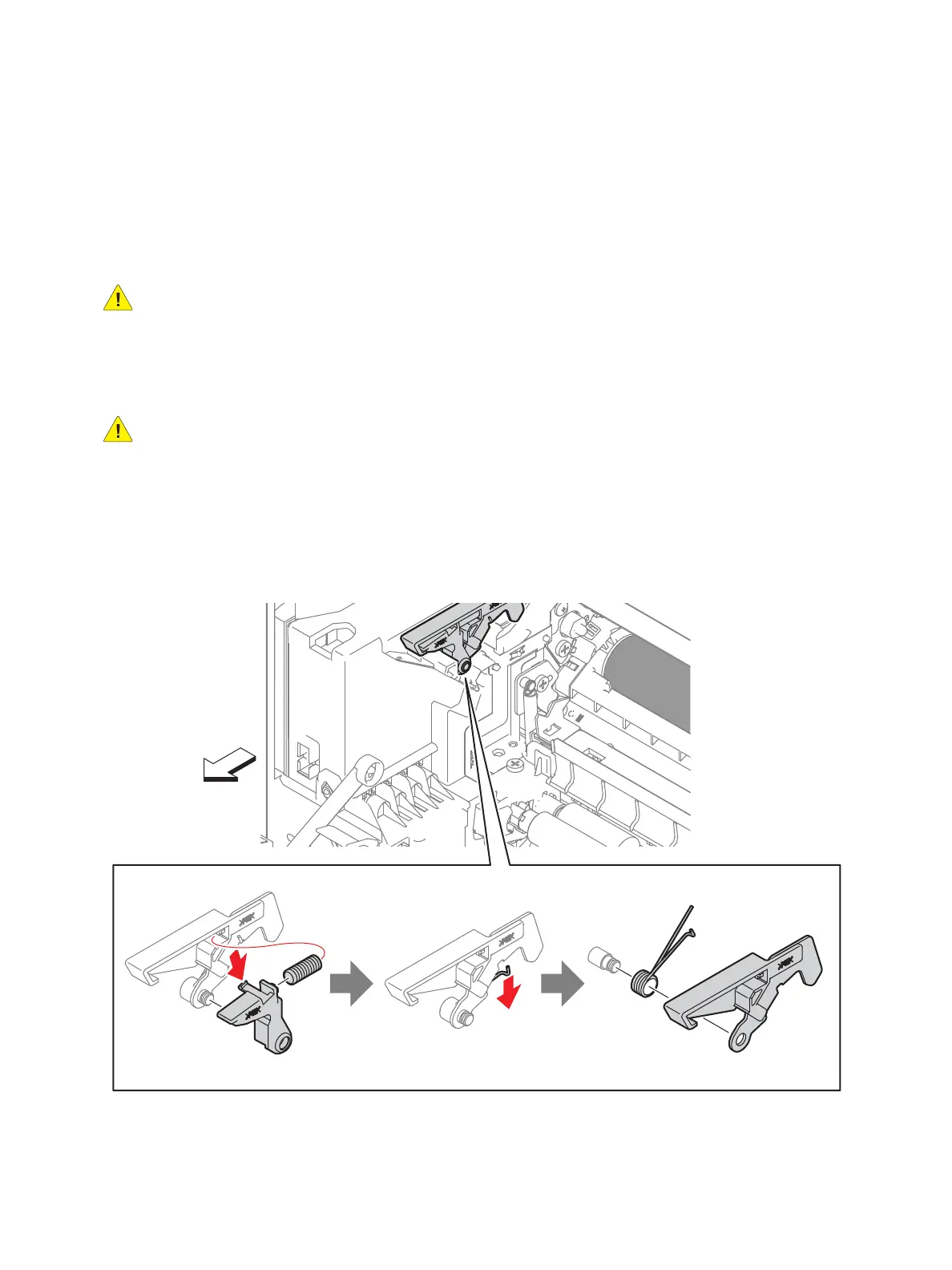

Transfer Belt Right Latch Kit
PL6.1.98
Note: The Transfer Belt Right Latch Kit includes the Transfer Belt Right Latch Housing, Transfer Belt
Latch Spring, Transfer Belt Right Rear Spring, Transfer Belt Latch Plate, and Transfer Belt Right
Latch Arm
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Waste Cartridge. (page 4-50)
3. Remove the Transfer Belt Assembly. (page 4-38)
CAUTION: When performing the following step, use caution not to drop and lose the Transfer Belt
Latch Spring (PL6.1.8).
4. Release the hook on the Transfer Belt Right Latch Arm (PL6.1.11), and pull it out of the shaft while
removing the Transfer Belt Latch Spring.
5. Release the Transfer Belt Right Rear Spring (PL6.1.9) from the Transfer Belt Latch Plate (PL6.1.10).
6. Remove the Transfer Belt Latch Plate from the shaft.
7. Remove the Transfer Belt Right Rear Spring from the shaft.
s6600-161
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
