Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-128
Front Door Assembly
(SFP PL19.1.34 / MFP PL19.1.42)

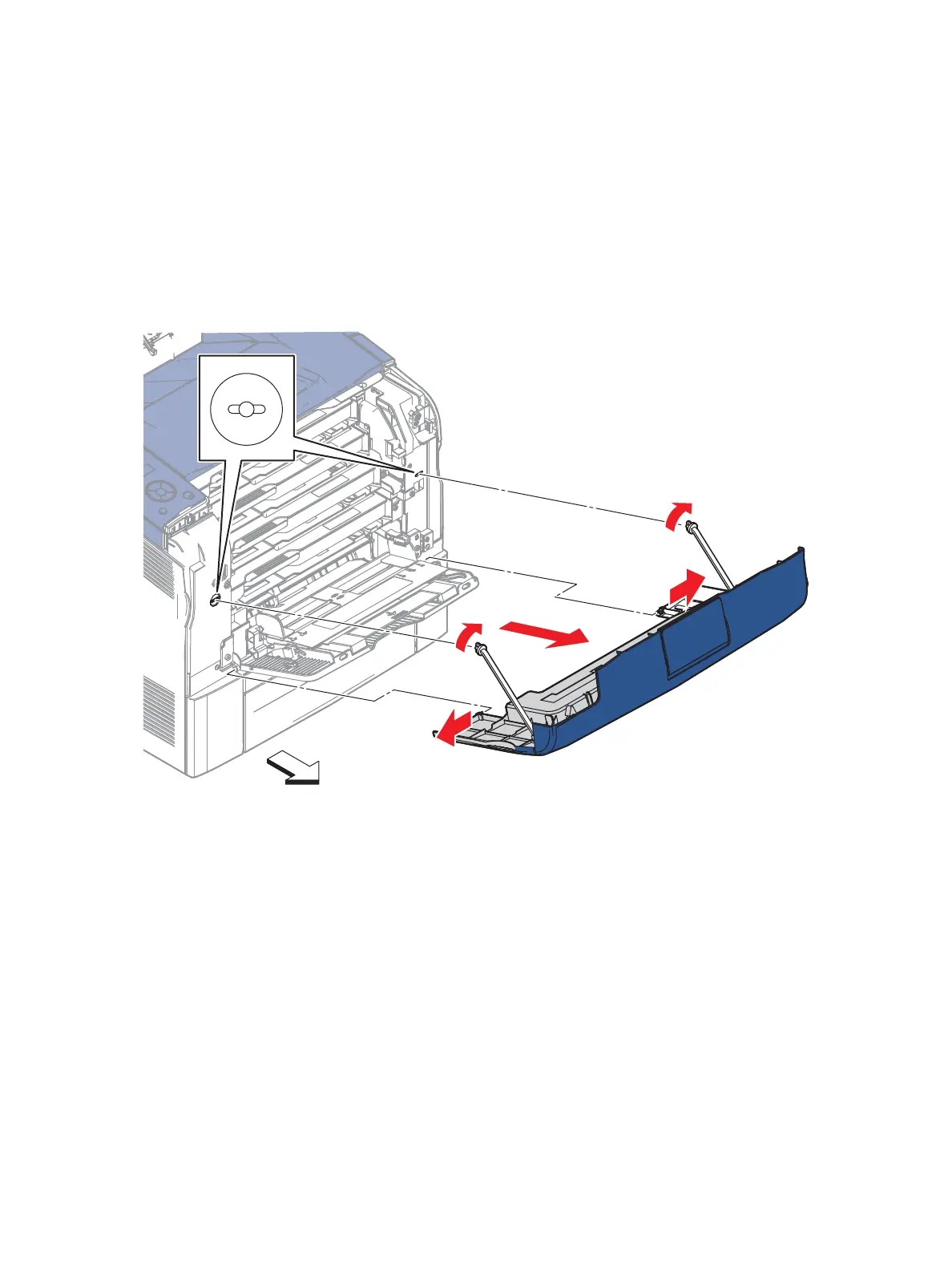

1. Remove the Bypass Tray Assembly (page 4-71) to simplify the Front Door removal.
2. Open the Front Door Assembly.
3. Rotate the ends of the left and right Front Straps (SFP PL19.1.31; MFP 19.1.39) 90 degrees to
release them from the slots on printer.
4. Push the hinge on either the left or right side enough to release the hinge from the boss. Then
slide the door in the other direction to free the other hinge boss and remove the door.
s6600-197
Front

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
