Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-77

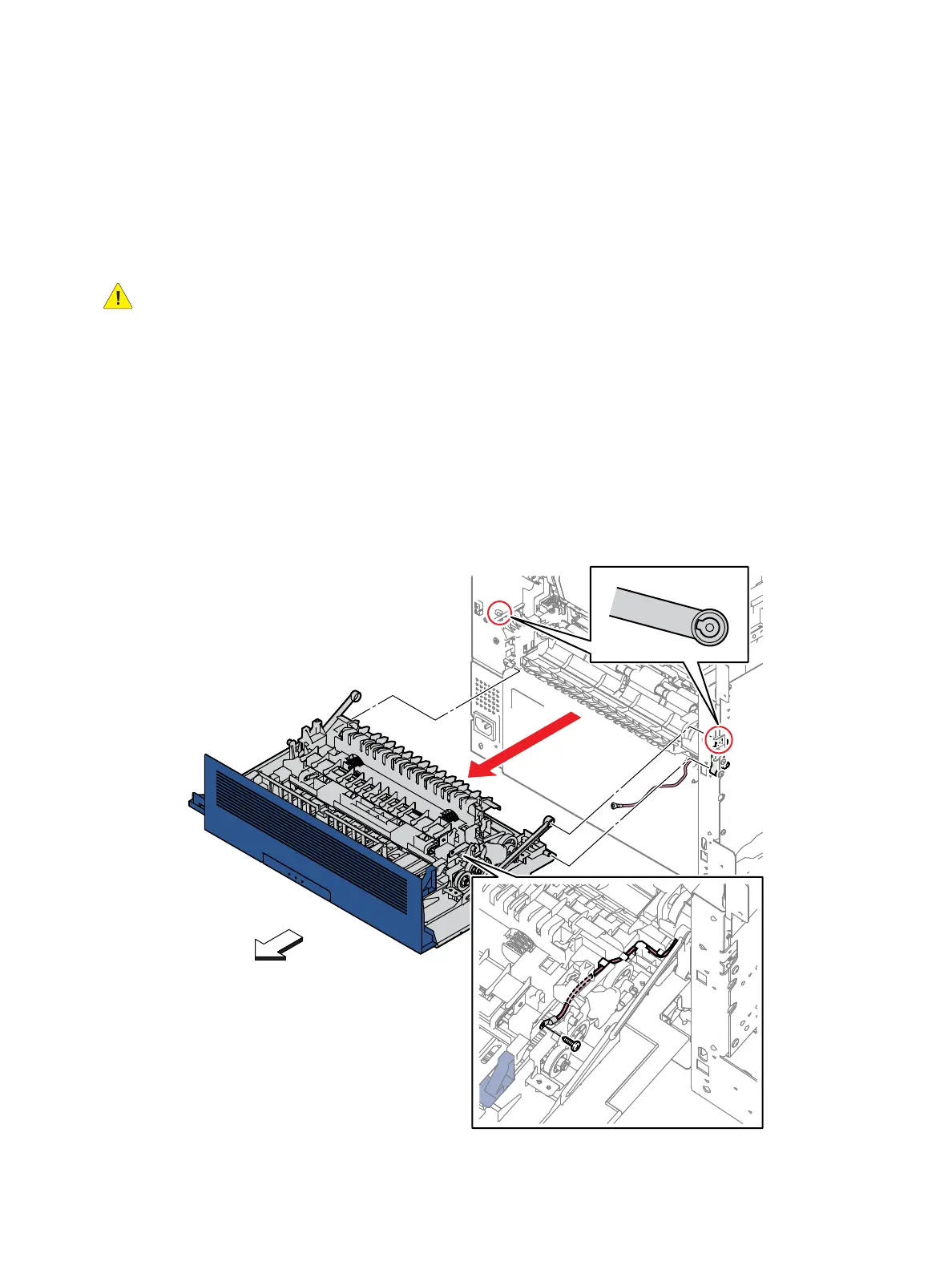

Duplex
Duplex Assembly
PL14.1.1
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Open the Rear Door Assembly (PL19.1.95).
2. Remove the Transfer Roller. (page 4-79)
3. Remove the screw (silver, tapping, 8mm) that attaches the power supply (pink wire) to the Duplex
Assembly (PL14.1.1), and release the wire from the harness guide.
4. Remove the Rear Cover Links by raising the Rear Cover slightly so that the holes on the Rear Cover
Links can be released from the keyed bosses on the left and right.
5. Raise the steel hinge pin on the left side and slide the pin to the right to remove it.
6. Swing the right side of the assembly out so that the corner is clear of the frame, then move the
assembly to the left to disengage the hinge pin on the right side. When the grounding spring is
clear of the hinge pin, lift the Rear Cover/Duplex Assembly away from the printer.
s6600-183
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
