Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-13

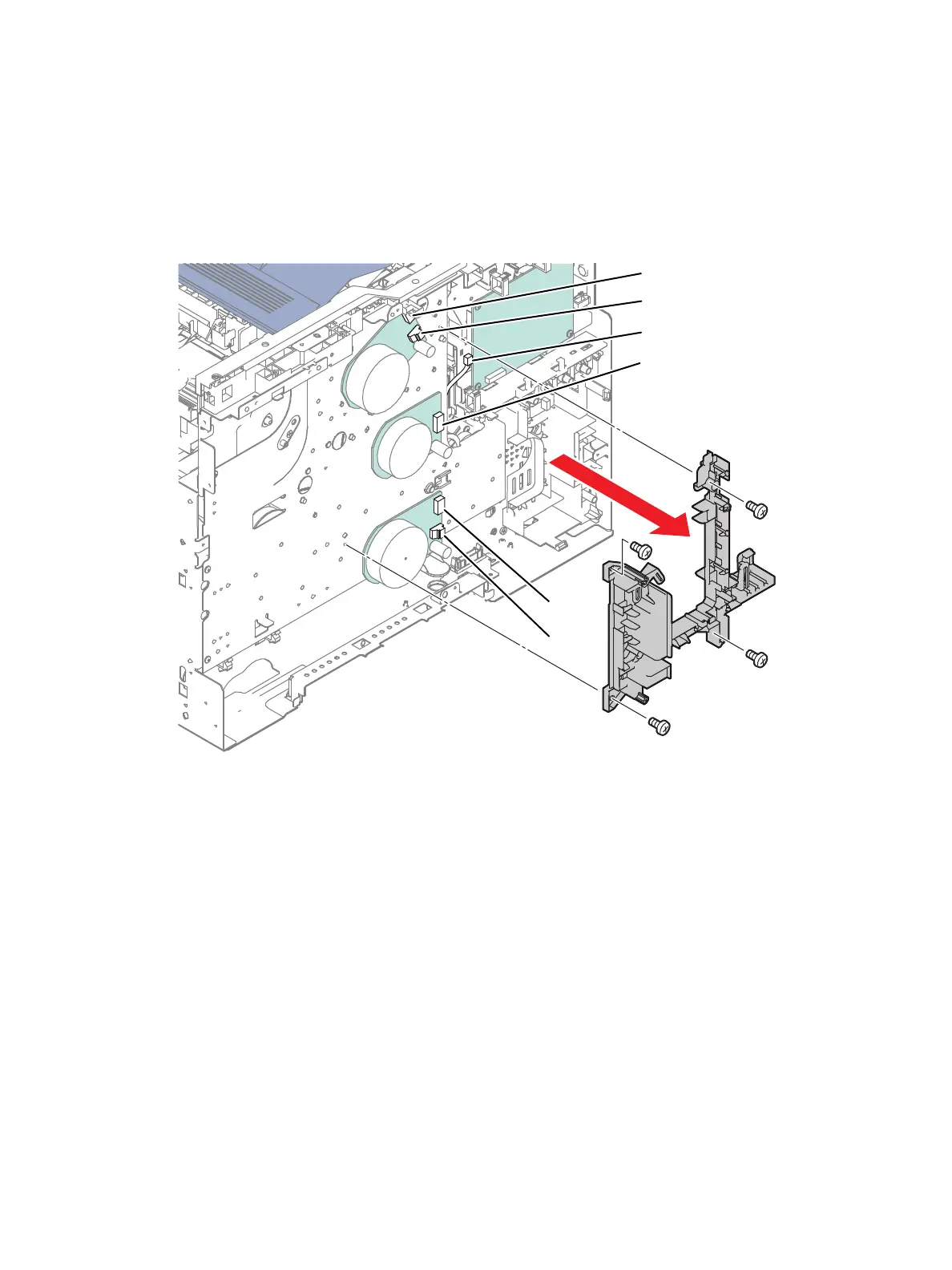

10. Release the harness from the Video Harness Guide (PL18.1.10).
11. Disconnect plugs P/J171, P/J311, P/J172, P/J312, P/J331, P/J213 from the three drive motors and
the interim connector from the jack inside the the Drive Assembly (PL3.1.1).
12. Release the harnesses from the clamps at the bottom of the Drive Assembly.
13. Remove the four screws (silver, 6mm) that attach the Video Harness Guide to the printer and
remove the guide.
s6600-104
P/J171
P/J311
Interim Connector
P/J331
P/J172
P/J312

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
