Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-18
9. Release the harness from the Video Harness Guide (PL18.1.10).
10. Disconnect plugs P/J171, P/J311, P/J172, P/J312, P/J331, P/J213 from the three drive motors and
the interim connector from the jack inside the the Drive Assembly (PL3.1.1).
11. Release the harnesses from the clamps at the bottom of the Drive Assembly.

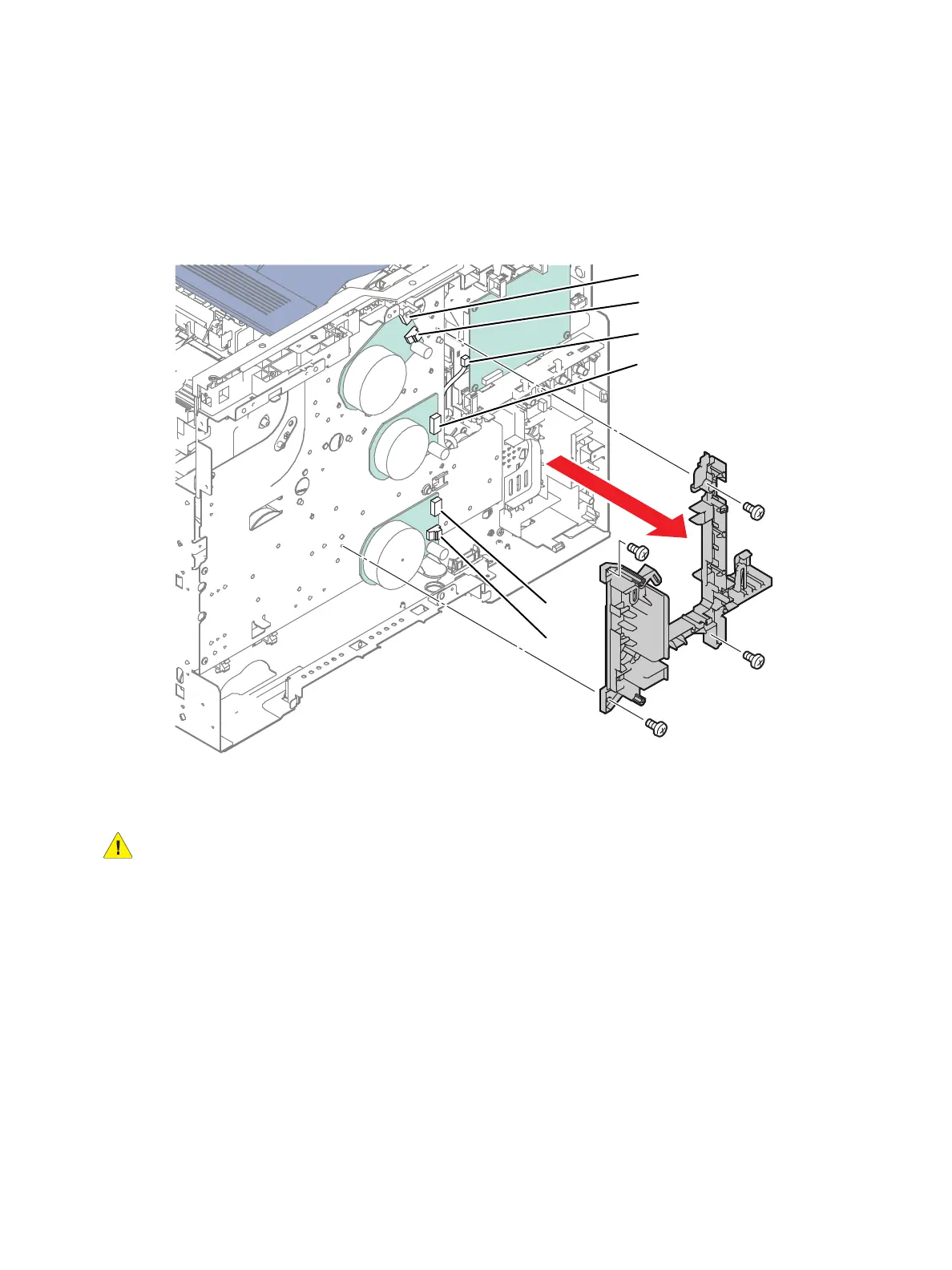

12. Remove the four screws (silver, 6mm) that attach the Video Harness Guide to the printer and
remove the guide.
13. Remove the screw (silver, 6mm) that attaches the Left Sub-Top Cover (PL 19.1.10) and remove it.
14. Remove the Transfer 2 Link (PL19.1.4) from the Transfer Coupling Link.
CAUTION: When performing the following step to remove the Drive Assembly, use caution not to
drop the gears.
15. Remove the ten screws (silver, 6mm) that attach the Drive Assembly to the printer and remove the
assembly.
Note: When placing the Drive Assembly on the workbench, face the gear side upward to prevent
the gears from falling off.
s6600-104
P/J171
P/J311
Interim Connector
P/J331
P/J172
P/J312

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
