Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-22

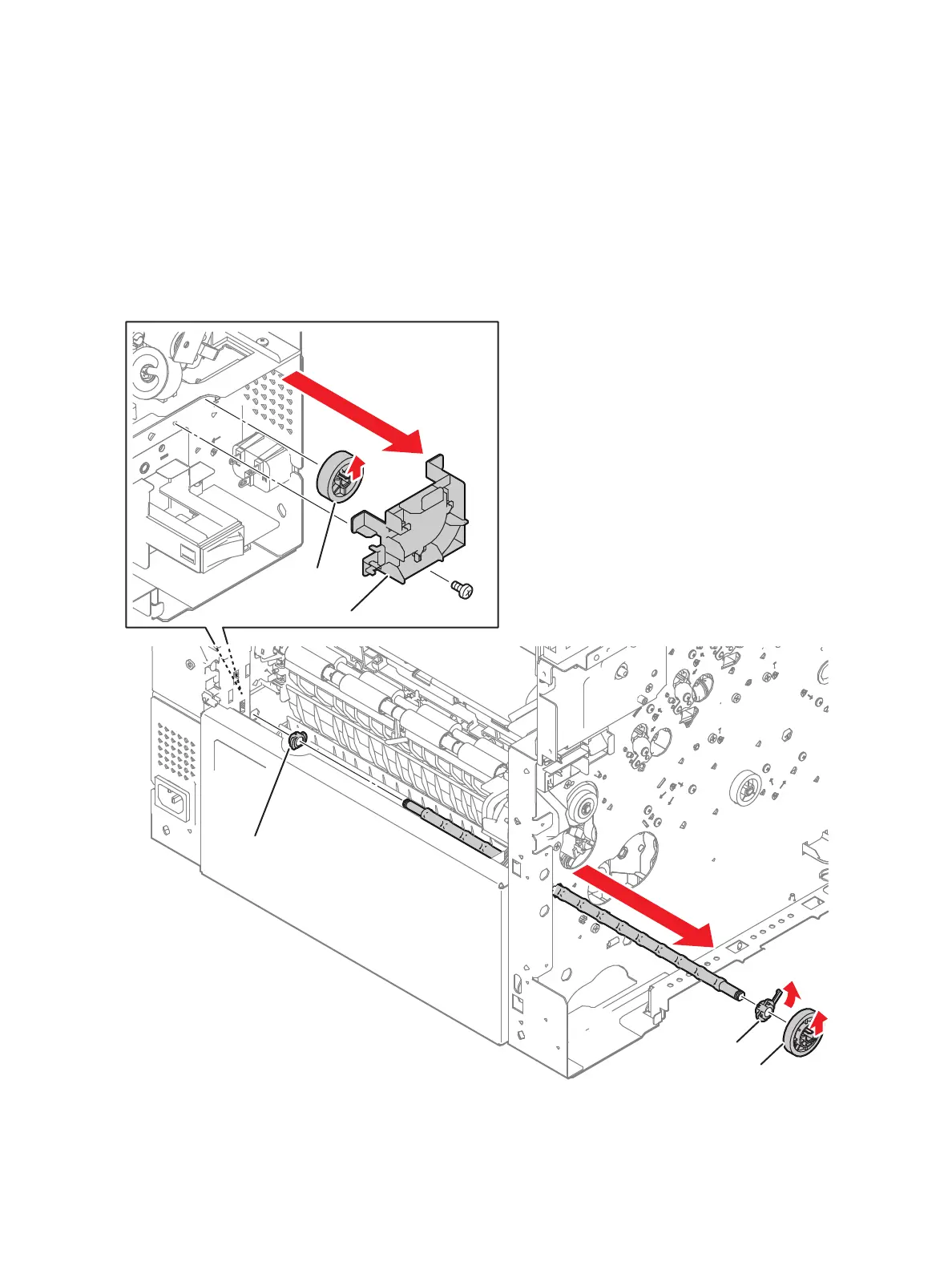

3. Release the harness from the LV AC Harness Guide (PL18.1.32).
4. Remove the screw (silver, 6mm) that attaches the LV AC Harness Guide to the printer and remove
the guide.
5. Release the hook of Waste Gear 3 (PL3.1.7) and remove the gear.
6. Release the hook of Waste Gear 2 (PL3.1.3) and remove the gear.
7. Unlock Waste Bearing 1 (PL3.1.4) and rotate the bearing to remove it.
8. Remove the Waste Idler Shaft (PL3.1.5) by pulling it out of the hole on the frame.
9. Remove Waste Bearing 2 (PL3.1.6).
s6600-108
Waste Gear 3
Waste Gear 2
Waste Bearing 2
Waste Bearing 1
LV AC Harness Guide

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
